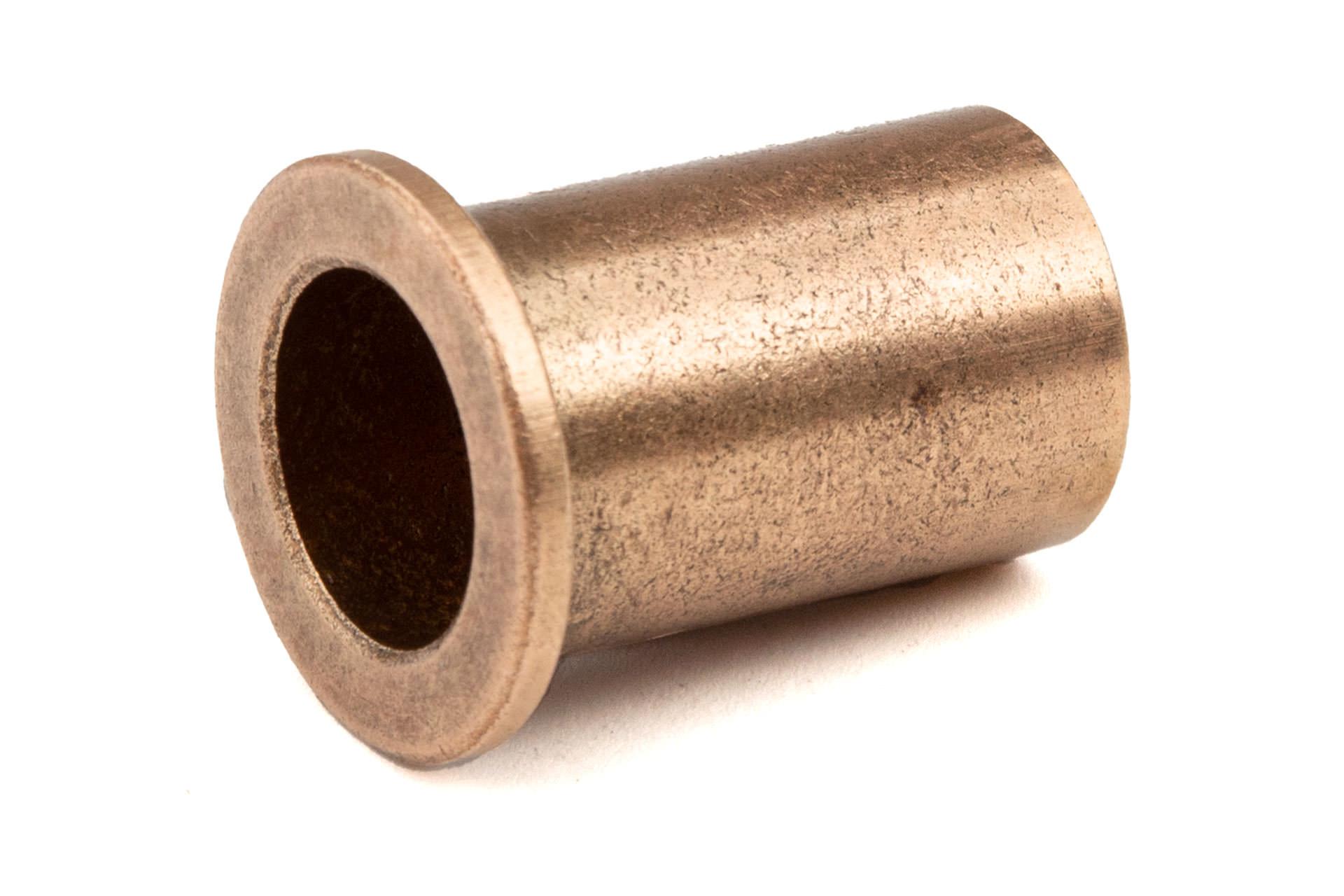

CuSn8 Wrapped Flanged Bushings for Railcars

Engineering Guide for Railway Applications

4



1. Overview

CuSn8 wrapped flanged bushings are widely used in railway rolling stock and railcar bogie systems where reliable sliding performance, high load capacity, and low maintenance are required.

These bushings are manufactured from CuSn8 phosphor bronze strip (EN 1.0026) that is cold-formed into a wrapped cylindrical bearing with an integrated flange. The surface typically includes diamond-shaped lubrication pockets or perforations designed to retain grease and reduce friction.

Typical configuration:

These components are commonly installed in articulated joints, suspension pivots, brake linkages, and coupling mechanisms of freight wagons.

2. Material Properties of CuSn8 Bronze

CuSn8 is a high-tin bronze alloy known for its strength, wear resistance, and good sliding characteristics.

Typical Chemical Composition

Mechanical Properties

Key Performance Advantages

High load capacity
Suitable for heavy railway components with intermittent oscillating motion.

Excellent wear resistance
Tin bronze structure provides strong resistance to abrasion.

Good corrosion resistance
Performs reliably in outdoor railway environments.

Good conformability
The wrapped structure allows slight deformation for improved shaft alignment.

3. Structural Design of Wrapped Flanged Bushings

The wrapped bushing structure differs significantly from traditional machined bronze bearings.

Key Structural Elements

Typical Geometry (Example B92F 25×20)

Tolerance System

This configuration ensures:

• secure press-fit into housing

• controlled running clearance for shafts

4. Lubrication System

One of the defining characteristics of CuSn8 wrapped bushings is the surface lubrication pocket structure.

Types of lubrication features

1. Diamond oil pockets

2. Perforated lubrication holes

3. Grease retention grooves

Functions:

• retain lubricant during oscillating motion

• reduce friction coefficient

• prevent dry running damage

• extend service life

Typical friction coefficient with grease:

0.08 – 0.15

5. Applications in Railcars

4



CuSn8 wrapped flanged bushings are used in several critical railcar subsystems.

5.1 Bogie Suspension Joints

Used in:

• secondary suspension arms

• stabilizer links

• equalizing beams

Requirements:

• high shock resistance

• heavy oscillating loads

• reliable lubrication retention

5.2 Brake Linkage Systems

Railway brake systems contain multiple pivot joints where bushings are required.

Advantages:

• reduced wear between steel pins

• stable braking performance

• simplified maintenance

5.3 Coupler and Draft Gear Components

Coupling mechanisms transmit large dynamic forces between railcars.

CuSn8 bushings provide:

• high load-bearing capacity

• resistance to impact loads

• long service life

5.4 Articulated Freight Wagon Mechanisms

Used in:

• rotating joints

• suspension pivots

• hinge points

These areas often involve low-speed oscillating motion, where bronze sliding bearings outperform rolling bearings.

6. Advantages Over Solid Bronze Bushings

For large railway fleets, the cost efficiency and maintenance benefits are significant.

7. Manufacturing Process

The production process typically involves the following steps:

1. Bronze strip rolling
   CuSn8 strip produced according to EN standards.

2. Lubrication pocket embossing
   Oil pockets or perforations are formed.

3. Cutting and forming
   Strip rolled into cylindrical shape.

4. Flange forming

5. Calibration and sizing

6. Quality inspection

Typical inspection includes:

• dimensional tolerance

• hardness testing

• visual inspection

• weight verification

8. Installation Guidelines

For railway maintenance workshops, proper installation is critical.

Recommended Steps

1. Clean housing bore.

2. Use a press tool for installation.

3. Avoid hammering directly.

4. Apply grease before shaft assembly.

Recommended housing material

• steel housings

• cast steel bogie components

9. Typical Service Life

Under normal railway conditions:

Service life depends on:

• lubrication maintenance

• environmental contamination

• load cycles

10. Conclusion

CuSn8 wrapped flanged bushings provide a reliable, cost-effective sliding bearing solution for railway rolling stock.

Their high load capacity, lubrication retention, and simple installation make them ideal for railcar applications such as:

• bogie suspension systems

• brake linkage mechanisms

• coupler joints

• articulated wagon components

As railway operators increasingly prioritize maintenance efficiency and lifecycle cost reduction, CuSn8 wrapped bushings remain a preferred choice for modern freight wagon engineering.
