Supplier of Bronze Grooved Bearings and Cast Bronze Sleeves
A grooved brass sleeve bushing is used as a bearing in mechanical applications. VIIPLUS manufactures and exports custom bronze sleeve bearings in various sizes and materials, including tin bronze, leaded tin bronze, high leaded tin bronze, aluminum bronze, manganese bronze, leaded red bronze, high-strength brass, silicon brass, beryllium copper, leaded copper, and lead-free copper alloys, tailored to customer specifications. Our bushings feature interior grooves for grease, enhancing lubrication distribution and minimizing friction and wear on mating surfaces.
Online Sales of Durable Oil-Grooved Tin Bronze Bearings and Bushings
Our dependable supplier network produces and delivers high-quality Cast Bushing Bronze Bearings, ensuring timely order fulfillment and compliance with strict quality standards. The grease groove design significantly improves the performance and lifespan of our bushings and bearings. We keep customers informed about the status of their Bronze sleeves, cast bronze brass bushings, and related contracts.
Cast Bronze Flange Groove Bushing, Bronze Bushing Solutions
We offer quality certificates and factory inspections for our cast bronze sleeve bearings, ensuring customer satisfaction. Lightweight and easy to install, these bearings are perfect for mining, construction, marine, transportation, and paper machinery applications. We specialize in contract manufacturing and exporting high-quality engineering cast bronze and brass bushings to fulfill your equipment needs.
Casting Bronze Bushing Supplier, Tin Bronze Bearings & Bushings, Cast Bronze Bushings Bearing Manufacturing, Bronze Bearing Experts
We provide dependable packaging for competitively priced, high-quality cast bronze sleeve bearings that comply with international standards and customer requirements. Made from various copper alloys, these bearings are produced via centrifugal, continuous, or sand casting in cylindrical and flanged shapes, followed by precision machining. They offer cost-effective, low-maintenance, and durable bushing solutions suitable for a wide range of machinery applications.
Heavy-Duty Cast Bronze Bushings Customized to Your Specifications.
Heavy-duty bushing products are highly durable. Cast bronze sleeve bearings provide an efficient bearing surface for linear or rotary motion, featuring low friction, excellent sliding properties, reduced heat generation, high wear resistance, and space-saving thin walls.
These bearings excel in radial and oscillating motions, low-speed rotation, and can endure corrosion, shock loads, and vibrations. They perform well in dirty environments and accommodate low-quality shaft finishes, thanks to oil holes and grooves for lubrication. Employing hydrodynamic, boundary, and mixed-film lubrication, they can utilize either grease or oil. Rely on the experts in bronze bearings for your requirements.
Grooved and Premium Bronze Bushings – Wide Range of Sizes
Beautifully crafted leather products.
Upgrade your machinery with high-quality bronze bushings. Explore our online catalog and request a quote! Our bearings and cast materials adhere to the highest standards, and we offer a wide range of sizes. We export bronze and copper alloys from China.
Materials that are classified as standard for bearings and bushings, specifically those that feature a groove, include CuZn25Al5. In addition to this primary alloy, there are several other relevant alloys that may also be utilized in various applications. These additional alloys encompass CuSn7ZnPb, commonly referred to by its shorthand designation RG7, along with CuSn10, CuSn12, CuPb10Sn, and CuPb15Sn. Also noteworthy are the CuAl10Ni alloy, alongside CuSn10Zn, which is identified by the designation RG10. Lastly, CuSn5ZnPb is another alloy that falls under the abbreviation RG5, marking it as part of this collection of materials suitable for bearings and bushings.
The Comprehensive Guide to Bronze Groove Bushings: Performance, Selection, and Quality
When specifying components for machinery involving rotation or oscillation, minimizing friction and wear is paramount. While standard bronze bushings offer reliable performance, bronze groove bushings take it a step further. These specialized components feature precisely machined grooves on their bearing surface, fundamentally enhancing lubrication and overall performance.
But what exactly makes these grooves so beneficial? How are these critical parts made and quality-assured? And how do you choose the right one for your specific needs? This guide dives deep into the world of bronze groove bushings, covering everything from their core advantages and applications to manufacturing processes and quality control.
Why Grooves Matter: The Lubrication Advantage
Imagine trying to spread butter evenly on toast with just a single dab in the middle versus using channels to guide it across the surface. Grooved bushings work on a similar principle for lubricants:
-
Standard Bushing Challenge: In some applications, especially under load or with specific types of motion, lubricant applied externally might struggle to reach the entire contact zone effectively. This can lead to dry spots, increased friction, heat buildup, and accelerated wear.
-
Grooved Bushing Solution: The grooves act as reservoirs to hold lubricant (like oil or grease) and as distribution channels to ensure it spreads evenly across the bearing surface, even under pressure. This maintains a consistent lubricating film where it’s needed most.
Key Benefits of Choosing Bronze Groove Bushings
The strategic use of grooves translates into several tangible advantages:
-
Improved Lubrication Delivery: The primary benefit. Grooves ensure a continuous supply and distribution of lubricant, minimizing direct metal-to-metal contact.
-
Reduced Friction and Wear: Consistent lubrication significantly lowers the coefficient of friction, leading to smoother operation, less heat generation, reduced energy consumption, and extended component life for both the bushing and the mating shaft.
-
Enhanced Self-Lubricating Properties: Bronze itself possesses some natural lubricity. Grooves can enhance this, especially when designed to retain lubricant effectively or when filled with solid lubricants like graphite (creating self-lubricating bushings).
-
Increased Load Capacity: A stable lubricant film helps distribute load more evenly across the bearing surface, allowing grooved bushings to potentially handle higher loads compared to plain bushings in certain conditions.
-
Durability: High-quality bronze alloys offer inherent resistance to wear and corrosion. Optimized lubrication further protects the bushing, ensuring longevity even in demanding environments.
Common Applications: Where Grooved Bushings Excel
Their reliability and enhanced lubrication make bronze groove bushings a popular choice across various industries and equipment:
-
Pumps: Used in shaft bearings and wear rings to reduce friction and wear in critical rotating elements.
-
Bearings: Integrated into bearing assemblies to extend operational life and improve reliability.
-
General Machinery: Found in numerous components requiring smooth, wear-resistant pivoting or rotation, such as:
-
Connecting rods
-
Gear assemblies
-
Pivot points in linkages
-
Construction equipment joints (excavators, loaders)
-
Agricultural machinery
-
Automotive systems (transmissions, steering)
-
Selecting the Right Bronze Groove Bushing: Key Considerations
Choosing the optimal bushing isn’t just about picking one off the shelf. Careful consideration ensures proper function and longevity:
-
Operating Conditions:
-
Load: How much weight or force will the bushing support?
-
Speed: How fast will the mating part rotate or oscillate?
-
Temperature: What is the expected operating temperature range? Bronze alloys have limits, and high temperatures affect lubricant viscosity.
-
-
Mating Surface: What is the material and hardness of the shaft or pin the bushing interacts with? Compatibility is crucial for minimizing wear on both components.
-
Lubrication:
-
Will external lubrication (oil/grease) be provided?
-
What type of lubricant is suitable? (Groove design can be optimized for oil vs. grease).
-
Is a self-lubricating (e.g., graphite-filled) design required or preferred?
-
-

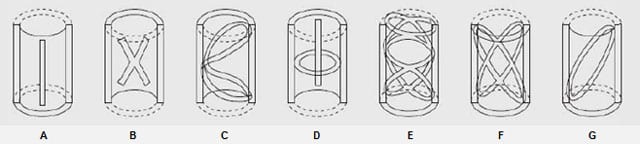

Groove Pattern: As discussed previously, different patterns (straight, spiral, figure-eight, etc.) suit different motions and lubrication needs.
-
Size and Shape: Dimensions (inner diameter, outer diameter, length) must match the housing and shaft precisely for proper fit and function. Tolerances are critical.
-
Environment: Will the bushing be exposed to moisture, chemicals, abrasives, or corrosive elements? This heavily influences the choice of bronze alloy (e.g., standard C93200, tin bronze, aluminum bronze).
Behind the Scenes: How Bronze Bushings Are Made (Casting Methods)
The quality of a bronze bushing starts with its manufacturing process. Casting is a common method, involving pouring molten bronze into a mold. Key techniques include:
-
Metal Mold Casting (Gravity Casting):
-
Process: Molten metal is poured into a permanent metal mold (often steel or iron) using gravity.
-
Advantages: Metal molds cool the molten bronze quickly. This rapid solidification leads to a fine-grained, dense structure with higher mechanical properties (strength, hardness) and good dimensional accuracy with a smooth surface finish.
-
Best For: High-volume production where precision and density are key.
-
-
Sand Casting:
-
Process: Molten metal is poured into a mold made from compressed sand. The mold is expendable (used once).
-
Advantages: Highly versatile, suitable for complex shapes and a wide range of sizes. Molding materials are relatively inexpensive. Adaptable for single-piece, batch, or mass production.
-
Considerations: Generally results in a coarser surface finish and less dimensional accuracy than metal mold casting. Cooling is slower, potentially leading to a less dense structure.
-
-
Centrifugal Casting:
-
Process: Molten metal is poured into a rapidly rotating cylindrical mold. Centrifugal force pushes the metal against the mold wall as it solidifies.
-
Advantages: Produces very dense castings, especially on the outer surface, with fewer impurities and non-metallic inclusions (which migrate towards the center bore). Excellent mechanical properties. Often eliminates the need for cores for the inner diameter.
-
Best For: Cylindrical parts like bushings and sleeves where high density and purity are critical.
-
The chosen casting method significantly impacts the bushing’s internal structure, purity, and final properties.
Ensuring Reliability: The Quality Inspection Process
Reputable manufacturers implement rigorous quality control throughout production:
-
Documentation Control: Using approved documents like quality inspection plans, material standards, process regulations, and technical product drawings.
-
Process Inspection:
-
Self-Inspection: Production workers perform checks at various stages (first piece, intermediate, final).
-
Full-Time Inspection: Dedicated inspectors monitor critical inputs and processes, including mold quality, core sand properties (for sand casting), molten metal composition and temperature checks.
-
-
Finished Product Inspection:
-
Inspectors check final dimensions, surface finish, and look for defects according to technical specifications.
-
Segregation: Qualified products are marked and approved. Rejected parts (requiring rework or scrapping) are clearly marked and stored separately.
-
-
Quality Analysis & Reporting:
-
Analyzing trends, including waste rates, material quality deviations, and dimensional conformance.
-
Maintaining detailed records of all inspections and results for traceability and continuous improvement.
-
This multi-stage inspection process ensures that the bronze groove bushings reaching the customer meet the required standards for performance and reliability.
Conclusion: The Reliable Choice for Reduced Friction
Bronze groove bushings are more than just simple metal cylinders; they are engineered components designed to solve critical lubrication and wear challenges. Their grooved design enhances lubricant distribution, reducing friction and extending the life of machinery in applications ranging from pumps and bearings to heavy construction equipment.
By understanding the benefits, considering the crucial selection factors, and appreciating the manufacturing and quality control processes behind them, you can confidently choose the right bronze groove bushing to ensure smooth, efficient, and long-lasting performance in your specific application. When in doubt, always consult with bearing specialists or trusted manufacturers.
Keep Your Machinery Humming: The Essential Guide to Bronze Bushing Maintenance
In our previous exploration, we delved into the intricacies of grooved bronze bushings and how their design optimizes machinery performance. But even the best-designed components require care to deliver a long and reliable service life. Bronze bushings, particularly those operating under demanding conditions, face inevitable challenges like wear and potential corrosion.
Understanding how to maintain these critical parts isn’t just about replacing them when they fail; it’s about proactive strategies to maximize their lifespan, ensure operational efficiency, and prevent costly downtime. This guide covers the essential aspects of bronze bushing maintenance, tackling the common issues and outlining best practices.
Tackling the #1 Challenge: Reducing Bronze Bushing Wear
Wear is the gradual removal of material from contacting surfaces in relative motion. While some wear is expected over a bushing’s life, excessive or premature wear can halt production and lead to damage. Here’s how to minimize it:
-
Foundation: Material Choice & Manufacturing Precision
-
The Right Stuff: Not all bronze is created equal. Alloys like C93200 (SAE 660) are popular for their balance of wear resistance and machinability. For highly corrosive environments, tin bronzes or aluminum bronzes might offer superior performance. Choosing a material specifically suited to your load, speed, and environmental conditions is the first line of defense against wear.
-
Precision Matters: A bushing manufactured to tight tolerances ensures proper fit and load distribution. High processing accuracy means smoother surfaces, reducing initial friction and break-in wear. Quality manufacturing, often involving techniques like continuous casting for dense structures, results in a more robust part less prone to premature failure.
-
-
Lifeline: Effective Lubrication
-
The Core Function: Whether it’s oil or grease, lubrication is vital. It creates a film separating the bushing and shaft, drastically reducing direct metal-to-metal contact. This minimizes friction, heat generation, and, consequently, wear.
-
Grooves at Work: As discussed previously, grooves (spiral, straight, figure eight, etc.) act as reservoirs and distribution channels, ensuring lubricant reaches critical areas consistently.
-
Self-Lubricating Solutions: Bushings with embedded graphite plugs offer a low-maintenance alternative. Graphite transfers a dry lubricating film to the shaft, ideal for hard-to-reach locations, environments where grease/oil is undesirable (e.g., food processing), or applications where regular re-lubrication is impractical.
-
-
Temperature Control: Keeping Cool Under Pressure
-
Heat as an Enemy: Friction generates heat. Excessive heat can degrade lubricants, reducing their effectiveness. It can also cause thermal expansion, potentially leading to binding or seizure, and can negatively affect the bronze material’s properties over time.
-
Cooling Strategies: Proper lubrication itself aids in heat dissipation. In high-heat applications, ensuring adequate lubricant flow or even considering external cooling systems might be necessary. Operating within the bushing material’s recommended service temperature range is crucial for longevity.
-
In essence, reducing wear is a combination of starting with the right, high-quality material and ensuring it stays properly lubricated and within its operational temperature limits.
Battling the Silent Threat: Bronze Bushing Corrosion
Metals react with their environment. Corrosion is this chemical or electrochemical reaction that degrades the material. While bronze alloys are generally more corrosion-resistant than ferrous metals like iron or steel, they aren’t immune.
-
Environmental Culprits: Industrial environments often contain airborne pollutants like sulfides (from burning fossil fuels, refineries) and nitrogen oxides (from vehicle exhaust, power plants). Moisture, salt (in marine or coastal areas), and acidic or alkaline process chemicals can also accelerate corrosion.
-
Material Resistance: Different bronze alloys offer varying levels of corrosion resistance:
-
Leaded Tin Bronzes (e.g., C93200): Good general-purpose resistance, but lead content can be less resistant to certain acids.
-
Tin Bronzes: Generally offer better corrosion resistance than leaded varieties.
-
Aluminum Bronzes: Known for excellent strength and resistance to seawater and many chemicals.
-
Brass (Copper-Zinc): Generally less corrosion resistant than true bronzes, especially susceptible to dezincification in certain conditions.
-
-
The Impact: Corrosion can roughen surfaces (increasing friction and wear), weaken the bushing structure, and ultimately lead to failure. The economic cost includes replacement parts, labor, downtime, and potentially compromised equipment safety.
-
Handling Corrosion: The primary strategy is prevention through material selection. Choose an alloy specifically designed to withstand the chemical and environmental conditions of your application. Keeping the bushing clean and properly lubricated can also provide a protective barrier.
The Power of Graphite: Understanding Self-Lubricating Bushings
Graphite copper sleeves (bushings) represent a significant advancement, particularly for applications where traditional lubrication is difficult or undesirable, such as in many types of construction machinery (excavators, loaders).
-
How They Work: These start as standard bronze bushings. Holes or patterns are machined into the bearing surface, and then solid graphite plugs are embedded under pressure. During operation, microscopic amounts of graphite transfer to the mating shaft, creating a durable, low-friction, dry lubricating film.
-
Key Benefits:
-
Reduced/Eliminated Maintenance: No need for periodic greasing or oiling.
-
Clean Operation: No lubricant leakage or contamination.
-
High Temperature Capability: Graphite remains stable at temperatures where oils and greases might break down.
-
Efficiency: Reduced friction contributes to smoother operation.
-
When sourcing components for heavy machinery or applications requiring high reliability with minimal maintenance, graphite-embedded bronze bushings are often the superior choice.
Manufacturing & Processing Insights: Why Quality Matters
While end-users don’t typically manufacture bushings, understanding key aspects highlights the importance of sourcing from reputable suppliers:
-
Heat Treatment: Processes like normalizing or annealing are critical after casting or heavy machining. These treatments refine the grain structure, improve toughness and ductility, and relieve internal stresses created during manufacturing. This ensures the bushing has the desired mechanical properties and isn’t prone to cracking. The specific treatment depends on the alloy composition (e.g., carbon content considerations mentioned in the source text, though less relevant for typical bronzes) and desired final properties.
-
Machining Precision & Safety: The points mentioned about secure clamping, correct tool setup, and safe chip removal during lathe operations underscore the need for careful, precise manufacturing to meet dimensional tolerances and achieve a good surface finish – both vital for proper bushing function.
When and Why Use Bronze Bushings? The Application Context
Bronze bushings, especially grooved and graphite types, are indispensable as sliding bearings. They facilitate motion between a rotating or oscillating shaft and a stationary housing. Their primary roles include:
-
Reducing Friction: Enabling smoother movement and lower energy consumption.
-
Absorbing Vibration & Noise: Providing quieter and more stable operation.
-
Resisting Wear: Protecting more expensive shafts and housings.
-
Simplifying Maintenance: Bushings are designed as replaceable wear items.
-
Handling Loads: Distributing forces effectively.
In construction machinery, the articulated joints (like boom pivots) are prime examples. The clearance between the pin (shaft) and the bushing is critical. Too little clearance can cause binding due to thermal expansion; too much clearance leads to impact loading, vibration, accelerated wear, inaccurate operation, and potentially catastrophic failure. Maintaining this clearance through proper bushing selection and replacement is vital for equipment safety and efficiency.
Conclusion: Proactive Maintenance for Peak Performance
Maintaining bronze bushings isn’t complex, but it requires diligence. By:
-
Selecting the right material for the load, speed, and environment.
-
Ensuring consistent and appropriate lubrication (or opting for self-lubricating types).
-
Controlling operating temperatures.
-
Being mindful of potential corrosion and choosing resistant alloys.
-
Ensuring proper installation and fit.
You can significantly extend the life of your bronze bushings, improve machinery reliability, reduce operational costs, and maintain a safer working environment. Always refer to manufacturer specifications and consult with bearing experts when dealing with critical applications.
Cast Bronze Bushings Bearing Manufacturing: Your Reliable Bronze Bearing Experts
Tailored Bronze Bushing Solutions
At viiplus, we specialize in crafting reliable mechanical transmission components tailored to the needs of various industries. Our expertise extends to a range of products including self-lubricating bushings, cast bronze sleeve bearings, graphite-impregnated bronze bushings, and clad bronze bushings. Each product is carefully designed to ensure high performance and durability, making us a trusted partner in your mechanical projects.
Brass Sleeve Bushings with Grooves
One of our standout offerings is the brass sleeve bushings with grooves. These cylindrical parts are crucial for ensuring smooth movement of shafts and axles in mechanical systems. Made from high-quality brass, these bushings are designed to hold lubricant in their grooves, significantly reducing friction and wear. This not only enhances the bushing’s lifespan but also improves the efficiency of the entire mechanical system.
Brass is preferred for its exceptional durability, corrosion resistance, and ease of machining. These properties make our brass sleeve bushings an essential component in industries such as automotive, aerospace, and industrial machinery, where they play a vital role in supporting moving parts and minimizing friction.
Serving Diverse Industries
Our products find applications across a broad spectrum of industries, including electrical and household equipment, printing machinery, machine tools, automotive and aircraft parts, farm and construction equipment, marine components, and food processing machinery. Our focus on expanding our line of self-lubricating, oil-free plain bearings is part of our commitment to innovation and serving new markets.
Comprehensive Support and Quality Assurance
We understand that timely and efficient delivery of high-quality products is crucial for our clients. Therefore, we maintain a strong network of reputable vendors and logistics partners to ensure that our manufacturing processes and supply chains run smoothly. We provide continuous updates on product status and contract progress, and we adhere to stringent quality standards. All our products come with necessary quality test reports and certificates, and we welcome third-party inspections to guarantee that our products meet your expectations.
Our packaging is designed to ensure that your products arrive in perfect condition, ready for immediate use. We also provide comprehensive support in logistics and delivery, helping you streamline your operations.
Phosphor Bronze Bushings: Durability and Versatility
Our phosphor bronze bushings are renowned for their durability and versatility. Made from a copper alloy enriched with tin and phosphorus, these bushings boast superior wear resistance, high strength, and excellent corrosion resistance, especially against saltwater. This makes them ideal for use in marine environments, as well as in machinery, automotive parts, and electrical equipment.
Thanks to their self-lubricating properties, phosphor bronze bushings are perfect for applications where maintenance can be challenging. They ensure reliable operation over long periods, even under harsh conditions, making them an indispensable component in any industrial or mechanical setup.
Why Choose Us?
At viiplus, we are committed to providing you with only the best in cast bronze bushings and bearing manufacturing. With our expertly tailored solutions, competitive pricing, and unwavering support, we are here to ensure your projects run smoothly and efficiently. Trust us to be your bronze bearing experts—where quality meets reliability.
Improve Your Machinery with High-Quality Bronze Bushings.
Looking to upgrade your machinery for better efficiency and longevity? High-quality bronze bushings can make a significant difference. We invite you to explore our extensive online catalog and request a quote today! Our bearings and cast materials are made to the highest standards, offering a huge range of sizes to meet your needs.
As a leading exporter of bronze and copper alloy in China, we pride ourselves on our commitment to quality and customer service. Our products are designed to improve your machinery’s performance and extend its lifespan, making your operations more cost-effective and reliable.
MATERIALS
Our standard material is CuZn25Al5, a bronze alloy known for its excellent mechanical properties and corrosion resistance. This makes it an ideal choice for a variety of applications, including bearings, bushings, and other parts that require high strength and durability.
In addition to our standard material, we also offer a range of additional alloys to suit different requirements:
1. CuSn7ZnPb (RG7): This tin bronze alloy offers good wear resistance, making it suitable for bearings and other components subjected to high loads and slow speeds.
2. CuSn10: This phosphor bronze alloy has excellent spring qualities, high fatigue resistance, and good corrosion resistance.
3. CuSn12: Known for its good wear resistance, this alloy is commonly used in the manufacture of high-load bearings.
4. CuPb10Sn: This leaded tin bronze alloy is often used for bearings with medium speed and load conditions.
5. CuPb15Sn: With even higher lead content, this alloy is used in bearings that need superior wear resistance and excellent machinability.
6. CuAl10Ni: An aluminum bronze alloy, CuAl10Ni is known for its high strength, excellent wear and corrosion resistance, making it suitable for high-load, high-speed applications.
7. CuSn10Zn (RG10): This tin bronze alloy is often used for bearings and components requiring good resistance to wear and fatigue.
8. CuSn5ZnPb (RG 5): This alloy is characterized by its excellent machinability and corrosion resistance, making it ideal for a range of applications including bearings and bushings.
Every application has unique requirements, and we’re confident we have the perfect bronze bushing for your needs. Check out our online catalog and request a quote today! We look forward to helping you improve the performance and longevity of your machinery.
As a leading manufacturer of solid turned bronze bushings, we specialize in products designed for heavy maintenance applications. Our offerings are not just high-quality components – they are solutions that save you time and money in research, design, and production costs.
Our bushings are machined from solid bronze to ensure maximum durability and reliability. We offer a wide variety of sizes and designs, all crafted to the highest standards. Whether you need a single bushing for a specific application or a large quantity for regular maintenance, we can cater to your needs.
Free Design Assistance:
Understanding that each application has unique requirements, we offer free design assistance to our customers. Our team of experienced engineers will work with you to develop custom bushings that perfectly fit your needs. Whether you have an existing design or need help creating one, we are here to assist.
Machined Bronze Parts:
Our machined bronze parts are made with precision and attention to detail. We use state-of-the-art machinery and advanced techniques to ensure each component meets the exact specifications. From simple shapes to complex designs, we can handle it all.
Applications and Corrosion Resistance:
Our solid turned bronze bushings are suitable for applications in contaminated environments. Thanks to the natural properties of bronze, our bushings offer excellent corrosion resistance, making them ideal for use in conditions where other materials might fail.
Whether you’re operating in the mining industry, dealing with heavy machinery, or handling marine applications, our bushings can withstand harsh conditions and still deliver exceptional performance.
Invest in our solid turned bronze bushings and experience the difference in quality and durability. E-mail us now for a quote or for more information on our products and services. We look forward to helping you enhance the performance and longevity of your machinery.
Customized Bronze Bushings for Your Industrial Needs.
Looking for customized bronze bushings for your industrial applications? Your search ends here. We specialize in providing oil and grease groove bronze bushings tailored to your specific needs. Now available online, our products can be ordered to the cast size or “to finish to” condition, ensuring the perfect fit for your machinery.
At our company, we don’t just sell bushings—we design solutions. We are experts in cutting lubrication grooves in virtually any pattern. Whether you need a single straight groove, multiple grooves, spiral grooves, or any other pattern, we’ve got you covered. Our cutting-edge technology and skilled technicians ensure precision and consistency in every piece.
Our cast groove bushings are renowned for their short and reliable delivery times. We understand that time is of the essence in industrial operations, and we are committed to delivering your order promptly to keep your projects on track.
We take safety and quality assurance seriously. All of our products undergo stringent quality checks to ensure they meet the highest standards. Our bronze bushings are designed to enhance the performance and longevity of your machinery, contributing to safer and more efficient operations.
Order your customized oil and grease groove bronze bushings from us today and experience the difference. We are more than just a supplier—we are your partner in ensuring the smooth operation of your machinery. Trust us to provide the top-quality bronze bushings your industrial needs demand.
Oil & Grease Groove Bushings: Lubrication groove options: cutting grease grooves in bushings, Discover our durable bronze bushing solutions today.
Enhance your machinery’s performance with our high-quality Oil & Grease Groove Bushings. We specialize in creating durable bronze bushings tailored to meet your specific needs. One of our unique offerings includes cutting grease grooves in bushings, which plays a crucial role in ensuring efficient lubrication and optimal performance.
Lubrication Groove Options:
Lubrication grooves are essential for maintaining a consistent supply of lubricant to the contact surfaces in a bearing. We offer various groove designs to suit your particular application:
- Straight Grooves: Ideal for linear motion, these grooves run parallel to the axis of the bushing.
- Spiral Grooves: These are perfect for rotational applications, as the spiral design helps distribute the lubricant evenly around the bushing.
- Circular Grooves: Typically used in applications with oscillating motion, these grooves are designed to retain more lubricant.
- Custom Groove Designs: If you have unique requirements, we can also create custom groove patterns to match your specifications.
Our bronze bushings are designed to be durable and reliable, ensuring a long lifespan and improved performance for your machinery. The strategic placement of these grooves ensures consistent lubrication, reducing friction and wear, and contributing to the overall efficiency of your machinery.
Discover our top-quality bronze bushing solutions today. We are committed to delivering products that exceed your expectations in terms of quality, performance, and durability. Trust us to provide you with the best oil and grease groove bushings to meet your industrial needs. Order now and experience the difference.
Upgrade your machinery with our premium bronze bushings. As a leading manufacturer based in China, we offer a large range of sizes, ensuring the perfect fit for your specific requirements. Our bearings and cast materials are made to the highest standards, delivering robust performance and longevity.
Explore our vast online catalog and request a quote today! We offer a wide variety of products, from sleeved to flanged bearings, all designed to meet your unique industrial needs. Our quality assurance is uncompromised, ensuring that you receive the best products every time.
Bronze Bushing Material & Custom Finished Size Options:
Our bushings are made from top-quality bronze alloys, renowned for their strength, durability, and excellent wear resistance. Whether your application requires a standard material like CuZn25Al5 or a specialized alloy, we’ve got you covered.
We understand that every application is unique, and that’s why we offer custom finished size options. Our products can be ordered to the cast size or to a specific finished size, ensuring the perfect fit for your machinery. Whether you need a one-off piece for a unique application or a large volume for standard components, we can cater to your needs.
Continuous Cast Solid Bronze Bearings:
We also offer continuous cast solid bronze bearings, known for their consistent quality and superior performance. The continuous casting process ensures a uniform bronze structure throughout the bearing, providing excellent reliability and increased lifespan.
We invite you to get our catalog and find information on sizes, prices, and availability. Our team is ready to assist you in selecting the ideal bushings for your applications, ensuring that you get the maximum value from your investment.
Shop our huge range of premium bronze bushings today and experience the difference of quality China made manufacturing. Your machinery deserves nothing but the best, and that’s exactly what we deliver.
Different groove styles for oil grooves in cast bronze bearings: Heavy-Duty Bronze Bearings for Demanding Applications. Choose the Experts in Bronze Bushing Manufacturing
| Groove Style | Description | Applications |
|---|---|---|
| Straight | A simple, straight groove that runs circumferentially around the bearing. | Low to moderate-load applications |
| Spiral | A continuous, spiral-shaped groove that wraps around the bearing. | High-speed, high-load applications |
| Dimples | Small indentations or dimples on the surface of the bearing trap and distribute the lubricant. | Low-load, low-speed applications |
| Helical | A helix-shaped groove that runs along the length of the bearing. | High-speed, high-load applications |
| Figure Eight | A groove that forms a figure-eight shape, with two overlapping circles. | Moderate to high-load applications |
| Cross Hatched | A combination of circumferential and longitudinal grooves that form a cross-hatched pattern. | High-load, high-speed applications |
These groove styles are designed to distribute lubrication evenly throughout the bearing, reducing friction and wear. The choice of groove style will depend on the specific application, with factors such as load, speed, and lubricant viscosity being taken into consideration.
Bronze C93200 (SAE 660) Sleeve (Plain) Bearings.
| Property | Description |
|---|---|
| Material | Cast Bronze C93200 (SAE 660) |
| Density | 8.9 g/cm³ |
| Hardness | 65-80 HRB |
| Tensile Strength | 241 MPa |
| Yield Strength | 138 MPa |
| Elongation | 10% |
| Coefficient of Friction | 0.12-0.15 |
| Maximum Operating Temperature | 163°C (325°F) |
| Maximum Load Capacity | 35,000 psi |
| Applications | Heavy-duty machinery, pumps, valves, automotive industry |
Cast Bronze C93200 (SAE 660) is a high-strength, corrosion-resistant bearing material with excellent wear resistance and good load-carrying capacity. It is suitable for heavy-duty machinery, pumps, valves, and other applications in the automotive industry. The material has a low coefficient of friction, which makes it ideal for use in high-load applications. The maximum operating temperature for this material is 163°C (325°F), and it has a maximum load capacity of 35,000 psi.
Top Advantages of Spiral Groove Bronze Bushing Discover the top benefits of using Spiral Groove Bronze Bushings in machinery
Spiral Groove Bronze Bushings are a type of plain bearing, also known as a bushing. They are used in various types of machinery to reduce friction between two surfaces sliding against each other. Here are the top benefits of using Spiral Groove Bronze Bushings in machinery:
- Self-Lubricating: These types of bushings are designed with spiral grooves that distribute lubricant evenly across the bearing surface. This reduces the need for constant re-lubrication and maintenance, leading to cost savings and less downtime.
- High Load Capacity: Bronze is a durable and strong metal, which makes these bushings capable of handling high load capacities. This makes them ideal for use in heavy machinery and high-stress applications.
- Long Service Life: The use of bronze material and the self-lubricating design contribute to the extended service life of these bushings. They resist wear and tear, performing well over long periods of time.
- Corrosion Resistance: Bronze is a corrosion-resistant material. This makes the bushings suitable for use in various environments, including those that are harsh or have high humidity.
- Reduced Friction: The spiral grooves in these bushings work to minimize friction between moving parts. This leads to smoother operation, reduced heat generation, and extended life of the machinery components.
- Excellent Heat Dissipation: Bronze has good thermal conductivity, allowing these bushings to dissipate heat effectively. This prevents overheating, further prolonging the life of the machinery.
- Versatility: Spiral Groove Bronze Bushings can be used in a wide range of applications, from automotive to industrial machinery, because of their robustness, reliability, and self-lubrication features.
- Cost-Effective: Although the initial cost may be higher than other types of bushings, the long-term benefits such as less maintenance, extended life span, and high performance make them a cost-effective choice in the long run.
- Tolerance to Misalignment: These bushings can tolerate slight misalignment, which can be beneficial in applications where perfect alignment is challenging to achieve.
- Environmental Friendliness: The self-lubricating feature reduces the need for excess lubricants, which can be harmful to the environment. Additionally, bronze is recyclable, further contributing to the environmental benefits of these bushings.
In summary, Spiral Groove Bronze Bushings are an excellent choice for many types of machinery due to their durability, self-lubrication, versatility, and numerous other benefits.
Spiral Groove Bronze Bushings are a type of plain bearing, also known as a bushing. They are used in various types of machinery to reduce friction between two surfaces sliding against each other. Here are the top benefits of using Spiral Groove Bronze Bushings in machinery:
- Self-Lubricating: These types of bushings are designed with spiral grooves that distribute lubricant evenly across the bearing surface. This reduces the need for constant re-lubrication and maintenance, leading to cost savings and less downtime.
- High Load Capacity: Bronze is a durable and strong metal, which makes these bushings capable of handling high load capacities. This makes them ideal for use in heavy machinery and high-stress applications.
- Long Service Life: The use of bronze material and the self-lubricating design contribute to the extended service life of these bushings. They resist wear and tear, performing well over long periods of time.
- Corrosion Resistance: Bronze is a corrosion-resistant material. This makes the bushings suitable for use in various environments, including those that are harsh or have high humidity.
- Reduced Friction: The spiral grooves in these bushings work to minimize friction between moving parts. This leads to smoother operation, reduced heat generation, and extended life of the machinery components.
- Excellent Heat Dissipation: Bronze has good thermal conductivity, allowing these bushings to dissipate heat effectively. This prevents overheating, further prolonging the life of the machinery.
- Versatility: Spiral Groove Bronze Bushings can be used in a wide range of applications, from automotive to industrial machinery, because of their robustness, reliability, and self-lubrication features.
- Cost-Effective: Although the initial cost may be higher than other types of bushings, the long-term benefits such as less maintenance, extended life span, and high performance make them a cost-effective choice in the long run.
- Tolerance to Misalignment: These bushings can tolerate slight misalignment, which can be beneficial in applications where perfect alignment is challenging to achieve.
- Environmental Friendliness: The self-lubricating feature reduces the need for excess lubricants, which can be harmful to the environment. Additionally, bronze is recyclable, further contributing to the environmental benefits of these bushings.
Spiral Groove Bronze Bushings are an excellent choice for many types of machinery due to their durability, self-lubrication, versatility, and numerous other benefits.
Lubrication plays a crucial role in the operation and longevity of spiral groove bronze bearings. These bearings are often used in applications where high loads, slow speed, or oscillating motion is present, such as in construction equipment, mining machinery, and agricultural equipment. Understanding the importance of lubrication can help maximize the efficiency and lifespan of these bearings. Here are some key reasons why lubrication is vital:
1. Reduction of Friction and Wear
Lubrication minimizes friction between the bearing surface and the shaft or other moving parts. This reduces wear and tear, extending the bearing’s lifespan. In spiral groove bronze bearings, the lubricant is specifically designed to fill the grooves, creating a thin film that separates the contact surfaces.
2. Heat Dissipation
Friction generates heat, which can lead to overheating and, in extreme cases, failure of the bearing. Lubricants help dissipate this heat away from the contact surfaces, thereby maintaining the optimal operating temperature of the bearing.
3. Corrosion Protection
Lubricants provide a protective layer on the bearing surface, which prevents corrosion caused by environmental factors such as moisture and contaminants. Bronze, in particular, is susceptible to corrosion, so using the right lubricant is important for these types of bearings.
4. Improved Performance
The spiral grooves in these bearings are designed to distribute lubricant evenly across the bearing surface. This ensures a smoother and more efficient operation, reducing energy consumption and improving overall machine performance.
5. Contaminant Removal
In some systems, the lubricant also plays a role in removing contaminants from the bearing surface. The spiral grooves help in this process by capturing and moving the contaminants away from the contact area, preventing damage and premature wear.
Proper lubrication of spiral groove bronze bearings is crucial for reducing friction and wear, dissipating heat, protecting against corrosion, enhancing performance, and removing contaminants. It is essential to use the right lubricant and maintain proper lubrication practices to ensure the optimal performance and longevity of these bearings.
Bronze Bushing Material Design Guide
(Compositions in wt%, balance Cu unless specified)
| Material | Sn | Zn | Pb | P | Ni | Al | Fe | Mn | Si | Cu |
|---|---|---|---|---|---|---|---|---|---|---|
| Tin Bronze Alloys | ||||||||||
| ZCuSn3Zn8Pb6Ni1 | 2.0-4.0 | 6.0-9.0 | 4.0-7.0 | – | 0.5-1.5 | – | – | – | – | Rest |
| ZCuSn3Zn11Pb4 | 2.0-4.0 | 9.0-13.0 | 3.0-6.0 | – | – | – | – | – | – | Rest |
| ZCuSn5Pb5Zn5 | 4.0-6.0 | 4.0-6.0 | 4.0-6.0 | – | – | – | – | – | – | Rest |
| ZCuSn10Pb1 | 9.0-11.5 | – | – | 0.5-1.0 | – | – | – | – | – | Rest |
| ZCuSn10Pb5 | 9.0-11.0 | – | 4.0-6.0 | – | – | – | – | – | – | Rest |
| ZCuSn10Zn2 | 9.0-11.0 | 1.0-3.0 | – | – | – | – | – | – | – | Rest |
| Lead Bronze Alloys | ||||||||||
| ZCuPb10Sn10 | 9.0-11.0 | – | 8.0-11.0 | – | – | – | – | – | – | Rest |
| ZCuPb15Sn8 | 7.0-9.0 | – | 13.0-17.0 | – | – | – | – | – | – | Rest |
| ZCuPb17Sn4Zn4 | 3.5-5.0 | 2.0-6.0 | 14.0-20.0 | – | – | – | – | – | – | Rest |
| ZCuPb20Sn5 | 4.0-6.0 | – | 18.0-23.0 | – | – | – | – | – | – | Rest |
| ZCuPb30 | – | – | 27.0-33.0 | – | – | – | – | – | – | Rest |
| Aluminum Bronze Alloys | ||||||||||
| ZCuAl8Mn13Fe3 | – | – | – | – | – | 7.0-9.0 | 2.0-4.0 | 12.0-14.5 | – | Rest |
| ZCuAl8Mn13Fe3Ni2 | – | – | – | – | 1.8-2.5 | 7.0-8.5 | 2.5-4.0 | 11.5-14.0 | – | Rest |
| ZCuAl9Mn2 | – | – | – | – | – | 8.0-10.0 | – | 1.5-2.5 | – | Rest |
| ZCuAl9Fe4Ni4Mn2 | – | – | – | – | 4.0-5.0 | 8.5-10.0 | 4.0-5.0 | 0.8-2.5 | – | Rest |
| ZCuAl10Fe3 | – | – | – | – | – | 8.5-11.0 | 2.0-4.0 | – | – | Rest |
| ZCuAl10Fe3Mn2 | – | – | – | – | – | 9.0-11.0 | 2.0-4.0 | 1.0-2.0 | – | Rest |
| Zinc Bronze Alloys | ||||||||||
| ZCuZn25Al6Fe3Mn3 | – | Rest* | – | – | – | 4.5-7.0 | 2.0-4.0 | 1.5-4.0 | – | 60.0-66.0 |
| ZCuZn26Al4Fe3Mn3 | – | Rest* | – | – | – | 2.5-5.0 | 1.5-4.0 | 1.5-4.0 | – | 60.0-66.0 |
| ZCuZn31Al2 | – | Rest* | – | – | – | 2.0-3.0 | – | – | – | 66.0-68.0 |
| ZCuZn35Al2Mn2Fe1 | – | Rest* | – | – | – | 0.5-2.5 | 0.5-2.0 | 0.1-3.0 | – | 57.0-65.0 |
| ZCuZn38Mn2Pb2 | – | Rest* | 1.5-2.5 | – | – | – | – | 1.5-2.5 | – | 57.0-60.0 |
| ZCuZn40Mn2 | – | Rest* | – | – | – | – | – | 1.0-2.0 | – | 57.0-60.0 |
| ZCuZn40Mn3Fe1 | – | Rest* | – | – | – | – | 0.5-1.5 | 3.0-4.0 | – | 53.0-58.0 |
| ZCuZn33Pb2 | – | Rest* | 1.0-3.0 | – | – | – | – | – | – | 63.0-67.0 |
| ZCuZn40Pb2 | – | Rest* | 0.5-2.5 | – | – | 0.2-0.8 | – | – | – | 58.0-63.0 |
| ZCuZn16Si4 | – | Rest* | – | – | – | – | – | – | 2.5-4.5 | 79.0-81.0 |
Notes
- Rest*: Indicates the remaining percentage after accounting for listed elements. For zinc bronzes (ZCuZnXX), Zn is the primary alloying element alongside Cu.
- Dashes (–): Element not present in the alloy.
- All values are approximate ranges (wt%).
This table aids in selecting the optimal bronze bushing material based on mechanical, thermal, or corrosion-resistant properties required by the customer.
Unlock Peak Machinery Performance: A Deep Dive into Grooved Bronze Bushings
In the intricate world of mechanical systems, smooth and reliable operation often hinges on components that might seem small but play a critical role. Among these unsung heroes are bronze bushings. But not all bushings are created equal. When lubrication is paramount, especially under demanding conditions, grooved bronze bushings step into the spotlight.
Plain bushings offer a simple bearing surface, but grooved variants take performance to the next level. These specialized bearings feature meticulously designed channels – the grooves – etched into their surface. Why? To revolutionize lubricant distribution, drastically reduce friction, minimize wear, and ultimately extend the life of your valuable machinery.
This post dives deep into the world of grooved bronze bushings. We’ll move beyond superficial descriptions to explore:
-
The logic behind different groove patterns.
-
The tangible benefits they deliver compared to non-grooved options.
-
Their critical applications across diverse industries.
-
The materials and manufacturing processes that ensure their reliability.
-
Key design considerations for optimal performance.
Let’s unlock the potential these components hold.
The “Why” Behind the Groove: More Than Just Channels
Imagine trying to water a large field with just a single sprinkler in the middle versus using a network of irrigation channels. The channels ensure water reaches every corner efficiently. Grooved bushings operate on a similar principle for lubricants.
-
Plain Bushing: Lubricant applied externally might struggle to penetrate the entire load zone, especially under pressure or during certain types of motion. This can lead to dry spots, increased friction, heat buildup, and premature wear.
-
Grooved Bushing: The grooves act as reservoirs holding lubricant and distribution networks actively channeling it to critical contact areas. This ensures a consistent lubricating film where it’s needed most.
This fundamental difference is the key to the enhanced performance offered by grooved designs.
Decoding Groove Patterns: Function Dictates Form
The genius of grooved bushings lies in their adaptability. Different patterns are engineered to optimize lubrication for specific movements, loads, and lubricant types. Here’s a breakdown of common patterns and their operational logic:
| Groove Pattern | Description / Shape | Typical Motion(s) | Best Lubricant Type | Key Advantage |
| Straight | Parallel to the bearing axis (axial) | Linear, Oscillating | Oil or Grease | Direct lubricant path for back-and-forth movement. |
| Spiral (Single/Double) | Winds around the bushing surface (like a screw thread) | Rotational | Oil or Grease | Continuous lubrication feed during rotation. |
| Figure Eight / Double Loop | Intersecting loops covering a large surface area | Rotational, Oscillating | Grease primarily | Redundant paths ensure coverage even if one is blocked; good grease retention. |
| Circular / Annular | A central ring groove around the circumference | Rotational, Pressure-Fed | Oil primarily | Divides bearing; ideal for introducing lubricant under pressure. |
| V-Shaped | Angled groove profile | Rotational | Oil primarily | Promotes hydrodynamic oil film formation. |
| Rectangular / U-Shaped | Flat-bottomed, wide groove | Rotational, Oscillating | Grease, Solid Lube | Maximizes lubricant volume retention (grease packing). |
| Diamond / Elliptical | Criss-cross or oval patterns | High Load, Slow Rotation | Grease, Oil | Enhances lubricant retention under heavy pressure. |
Contrasting Logic: A spiral groove is perfect for a continuously rotating shaft because it constantly “pumps” lubricant along the bearing length. In contrast, a straight groove excels in oscillating applications (like a pivot point) because it directly feeds lubricant into the load zone during the back-and-forth motion. Choosing the wrong pattern (e.g., a straight groove for high-speed rotation) could lead to inadequate lubrication at the ends.
The Tangible Advantages: Why Choose Grooved?
Compared to their plain counterparts, grooved bronze bushings offer significant benefits:
-
Superior Lubrication Delivery: Grooves act as reservoirs and distribution channels, ensuring a consistent lubricant film reaches the entire bearing surface, especially under load. This directly combats wear.
-
Reduced Friction & Heat: Consistent lubrication minimizes metal-to-metal contact, drastically lowering the coefficient of friction. This translates to less energy loss and significantly reduced operational heat, preventing thermal expansion issues and material degradation.
-
Increased Load Capacity: By maintaining a reliable lubricant film, grooved bushings can handle higher pressures and heavier loads. The lubricant film helps distribute the load more evenly across the bearing surface. Certain patterns (like Figure Eight or Diamond) are specifically designed for high-load scenarios.
-
Enhanced Maintenance Efficiency: Grooves can hold more lubricant, extending re-lubrication intervals. Furthermore, some designs incorporate graphite-filled grooves, creating self-lubricating bushings that require minimal to no periodic maintenance, drastically reducing downtime and labor costs.
-
Exceptional Durability: Bronze alloys, particularly C93200, offer inherent resistance to wear, corrosion, and deformation. The optimized lubrication provided by grooves further enhances this durability, ensuring long service life even in harsh operating environments (dust, moisture, chemicals).
Where They Shine: Applications Across Industries
The versatility and robustness of grooved bronze bushings make them indispensable in numerous demanding sectors:
-
Automotive: Found in steering columns, transmissions, kingpins, and suspension systems, ensuring smooth operation and longevity despite constant vibration and varying loads.
-
Construction & Heavy Machinery: Crucial in pivot points for excavators, loaders, and bulldozers, where they withstand extreme loads, shock impacts, and abrasive conditions.
-
Agriculture: Used in tractors, harvesters, and other farm equipment, providing stability and wear resistance in dusty, dirty, and often challenging terrains.
-
Marine: Essential for propeller shafts, rudder bearings, and deck equipment, valued for bronze’s natural corrosion resistance in saltwater environments.
-
Mining: Employed in crushers, conveyors, and drilling equipment, handling heavy-duty cycles, abrasive dust, and significant impact forces.
The Building Blocks: Material & Manufacturing Insights
The performance of a grooved bushing isn’t just about the pattern; it’s also about what it’s made of and how it’s made:
-
Primary Alloy – C93200 (SAE 660) Bearing Bronze: This leaded tin bronze is the workhorse material. Its composition provides an excellent balance of strength, wear resistance, anti-friction properties, and machinability. The lead content enhances its bearing properties, allowing it to “embed” small abrasive particles, protecting the shaft.
-
Graphite Integration for Self-Lubrication: For low-maintenance or hard-to-reach applications, grooves can be plugged with solid graphite. During operation, a thin layer of graphite transfers to the shaft, providing continuous dry lubrication. This eliminates the need for grease or oil in many cases.
-
Manufacturing Matters:
-
Continuous Casting: Often used to produce the raw bronze stock, ensuring a fine-grained, dense, and porosity-free structure, which is vital for strength and wear resistance.
-
Precision Machining: Required to create the intricate groove patterns accurately according to design specifications. This ensures the grooves function as intended for optimal lubricant flow.
-
Getting it Right: Critical Design Considerations
Specifying the correct grooved bushing involves careful thought:
-
Groove Placement is Key: Grooves should generally terminate 1/8″ to 1/4″ (approx. 3mm to 6mm) from each end of the bushing. Why? This creates a “dam” that prevents lubricant from being easily squeezed out the ends, ensuring it stays within the bearing area. Extending grooves to the very edge is usually counterproductive.
-
Groove Dimensions Matter: The width and depth aren’t arbitrary. A common guideline is groove width ≈ 0.1 × bore diameter, and depth ≈ 0.5 × width. However, this varies based on lubricant type and application specifics.
-
Lubricant Type Drives Groove Choice:
-
Oil: Thinner films benefit from patterns that promote hydrodynamic lift (like V-shaped or spiral grooves).
-
Grease/Solid Lubricants: Thicker consistency requires wider, deeper grooves (like Rectangular/U-shaped or Figure Eight) to act as effective reservoirs.
-
-
Load and Motion Dictate Pattern: As detailed in the table above, rotational motion benefits most from spiral or circular grooves, while oscillating or linear motion often pairs best with straight grooves. High loads might necessitate Figure Eight or Diamond patterns.
Beyond the Standard: Customization and Alternatives
While standard patterns cover many applications, manufacturers often offer:
-
Custom Groove Patterns: Tailored designs for unique motion profiles, extreme conditions, or specific lubrication requirements.
-
Custom Sizes and Tolerances: Bushings made to non-standard dimensions.
-
Graphite-Infused Designs: Various percentages and placements of graphite plugs for optimized self-lubrication.
It’s also worth noting solid lubricant embedded bushings (like those with graphite plugs throughout, not just in grooves) as an alternative. These eliminate traditional grooves entirely, relying on the solid lubricant matrix. They offer excellent maintenance-free operation but might have different load/speed characteristics compared to traditionally grooved and lubricated bushings.
Conclusion: The Indispensable Role of Grooved Bronze Bushings
Grooved bronze bushings are far more than simple cylindrical bearings. They are engineered components designed to solve critical lubrication challenges in demanding mechanical systems. By understanding the logic behind different groove patterns, appreciating the material strengths, and adhering to sound design principles, engineers and maintenance professionals can leverage these components to:
-
Significantly reduce friction and wear.
-
Increase load-bearing capacity.
-
Improve operational efficiency and reduce energy consumption.
-
Minimize maintenance requirements and downtime.
-
Extend the overall lifespan of machinery.
Whether in the engine of a car, the arm of an excavator, or the shaft of a ship’s propeller, grooved bronze bushings are working tirelessly behind the scenes. When selecting the right bushing for your application, considering the specific demands and consulting with bearing specialists or reputable manufacturers is always the best path to achieving optimal performance and reliability.
Heavy-Duty Solid Bronze Bushing Manufacturer.
Streamline your research, design, and production costs. Contact us for a diverse range of machined bronze parts, perfect for contaminated environments and providing outstanding corrosion resistance, along with complimentary design support.
Cast Groove Bushing: Quick Delivery with Guaranteed Safety and Quality.
Beautifully crafted leather products.
Customized Bronze Bushings for Your Industrial Needs. Oil & Grease Groove Bronze Bushings are now available online. Products can be ordered in cast size or “to finish to” condition, with expertise in creating lubrication grooves in virtually any pattern. Advantages of grooved bronze bearings include:
- Resistant to impurities
- Suitable for corrosive environments
- Able to withstand impact loads and vibrations at low speeds
- Features grooves to retain lubricant
Premium Bronze Bushing Materials
Machining Oil Grooves in Cast Bronze Bearings – Final Processing
We provide a variety of cast bronze sleeve bearings and bushings with customizable oil/grease holes and internal grooves. Our offerings include custom-sized bronze bushings with oil grooves, plain bearings, flanged bearings, and thrust washers, made from leaded, phosphor, and aluminum bronzes. We also supply custom groove bronze bushings in centrifugal or continuous cast forms for any size or volume. Our solid bronze bushings are high-compression, evenly lubricated, and maintenance-free. As experts in bronze bearings and bushings, our sales team offers guidance on certified, traceable materials. We supply machined grooved bushings and bearing materials, including Leaded (Tin) Bronze SAE660, C93200, Phosphor Bronze Groove Bearings, RG7 Groove Parts, RG5 Groove Bearings, and Aluminum Bronze Groove Bushings. Custom castings are available within our standard stock range.
Centrifugal Cast Bronze Bushings & Bearings: Your Advantage Awaits!
Cast bronze bushings are created from solid or hollow bronze alloy bars, shaped through continuous or centrifugal casting, which yields a fine-grain metal with excellent mechanical properties. Centrifugal casting, ideal for cylindrical components, spins a mold to control wall thickness based on the material used.
At viiplus, we offer comprehensive processing and finishing for non-ferrous cast bronze bearings, including sawing, turning, milling, drilling, straightening, chamfering, and thermal treatments. We specialize in high-quality groove cast bronze bushings and provide services from a single source. For more information, visit viiplus.com.
Bronze Bearings with Groove Lubrication Options
Grooved bronze bearings excel in harsh, contaminated environments, making them suitable for demanding applications. Constructed from CuSn7Zn4Pb7 bronze with 85% copper content, they provide excellent sliding properties and feature fully machined surfaces. Alternatives such as CuAl10Ni, CuSn10, and CuSn12 are also available.
Typically lubricated with grease, these bearings can use oil when needed. High-quality lubricants reduce friction and wear by forming a protective film between the bearing and shaft. For applications with heavy contamination, sealing the bearing is recommended to safeguard both the bearing and lubricant.
Quality Assured Durable Bronze Bushing
Our foundry specializes in high-quality cast bronze bearing bushings and non-ferrous metal semi-finished products. VIIPLUS is recognized for its innovation and expertise. Our motto, “Quality is added value! This is what we stand for!”, reflects our commitment to excellence. We manufacture oil grooves for bronze bushings and bearings, adhering to the highest standards and offering a wide variety of patterns. Discover our extensive inventory!
We supply finished bronze groove bearing parts made from bronze alloys that meet European and US standards, including leaded, phosphor, and aluminum bronze. Our solid bronze bearings, crafted from CuSn7Zn4Pb7 continuously cast bronze (85% copper), ensure excellent sliding performance. Our mission is to earn customer respect and loyalty through competitive pricing and high-quality groove bearing components and copper-based alloy bushings globally. All solid bronze bearings with an inner diameter of 14 mm or more feature an axial lubrication groove.
Choosing High-Quality Bronze Bearings & Copper Sleeves
Copper sleeves provide high hardness, wear resistance, excellent casting and machining properties, and superior corrosion resistance. Manufacturing requires meticulous management at each stage. Proper core positioning during casting prevents size discrepancies, and castings should be cleaned prior to semi-finished processing. Allow the material to cool, as copper shrinks, to ensure accurate finishing at room temperature before proceeding. After completion, particularly for straight sets, store items vertically to prevent deformation. When packaging, ensure ample space to avoid deformation from impacts during transportation.
Cras ultricies ligula sed magna dictum.
Range of Applications for Grooved Bronze Bearings
Discover dependable bronze bearings for your machinery. Our cast bronze bearings with solid lubricant inserts are excellent for axial and radial oscillatory movements. Precision-engineered, they are perfect for mining, cranes, marine and offshore applications, hydraulic cylinders, construction equipment, and vehicle manufacturing.
