Precision Engineering
Advanced production and quality control processes enable us to meet tight tolerances and exact specifications, ensuring superior accuracy and consistency.
Client Centric Approach
We adapt our manufacturing processes to align with client requirements, offering tailored solutions for a wide range of applications.
Timely Delivery
Committed to meeting tight deadlines without compromising on quality, we ensure reliable and efficient production timelines.
Versatility
Capable of handling both small-scale and high-volume orders, we provide seamless support for projects of any size.
Advantages of wrapped bronze bearings
wrapped bronze bearings
Wrapped bronze bearings are designed for extended service intervals under harsh conditions and high contamination levels. Their running surface features diamond-shaped lubrication pockets or a hole pattern, which must be filled with grease during installation. These bearings are manufactured in compliance with ISO 3547.
Materials：Wrapped bronze bearings are made entirely of high-purity phosphor bronze CuSn8 with minimal impurities. They are manufactured from strips that are wrapped and calibrated.
Wrapped bronze bearings require lubrication with grease or oil during installation. High-quality lubricant is crucial to minimize friction and wear by creating a protective film between the bearing and shaft. In heavily contaminated environments, sealing the bearing is recommended to safeguard both the bearing and the lubricant.
Specializing in wrapped bearings or metal plain bearing bushings
When considering wrapped bearings or metal plain bearing bushings for custom expedite options, it’s important to evaluate the specific requirements of your application, such as load capacity, speed, temperature, and environmental conditions. CUSN8 Wrapped Bearings： Ideal for applications requiring good wear resistance and compatibility with various lubricants.
- Wrapped Bearings (CUSN8)
- Material: CUSN8 typically refers to a bronze alloy (copper-tin) with 8% tin content, often used in bearing applications due to its good wear resistance, low friction, and compatibility with various lubricants.
- Applications: Wrapped bearings made from CUSN8 are commonly used in low to moderate load applications where corrosion resistance and durability are important. They are often used in automotive, industrial, and marine applications.
- Advantages:
- Good wear resistance.
- Suitable for high-load and low-speed applications.
- Can be used with or without lubrication.
- Considerations: Ensure the bearing is properly lubricated if operating under high loads or speeds to prevent premature wear.
Manufacturing & Production
Metal Plain Bearing Bushings
- Material: Metal plain bearing bushings can be made from various materials, including bronze, brass, steel, or composite materials. The choice of material depends on the specific application requirements.
- Applications: Plain bearing bushings are used in a wide range of applications, from heavy machinery to automotive components. They are suitable for both rotational and sliding motions.
- Advantages:
- High load-carrying capacity.
- Can operate in high-temperature environments.
- Long service life with proper maintenance.
- Considerations: Metal bushings may require regular lubrication to maintain performance and prevent wear. They may also be more susceptible to corrosion if not properly treated or coated.
Wrapped Bearing Design & Custom Expedite Options:
If you need custom expedited options, consider the following:
- Material Selection: Choose the material that best suits your application’s load, speed, and environmental conditions.
- Lubrication: Determine whether the bearing or bushing will be self-lubricating or require external lubrication.
- Custom Sizes: Ensure that the manufacturer can provide the exact dimensions and tolerances required for your application.
- Lead Time: Expedited options may be available, but confirm with the supplier to meet your timeline.
Custom Wrapped Bushing Bearing
We offer a wide range of bearings, PTFE-lined wrapped bearings, Acetal Lined wrapped Bearings,Wrapped standard bearings bimetal bearings, thrust bearing, washer and custom machined products, including Cast Bronze Bearings suitable for various industrial applications. Whether your project is large and complex or smaller with standard sizes, we have the right solution for you. We provide quotes in both metric and imperial sizes and specialize in creating unique, custom sizes tailored to your specific needs.
PTFE-lined wrapped bearings are an excellent choice for applications requiring dry running, low friction, and low wear. These bearings are designed with a multi-layer structure that provides superior performance in demanding environments. Below is a detailed breakdown of their features, benefits, and applications:
Structure of PTFE-Lined Wrapped Bearings: metal composite self-lubricating bearing uses high-quality low carbon steel as the substrate…
- PTFE Layer:
- The top layer is a PTFE (polytetrafluoroethylene) mixture, which provides excellent sliding characteristics and forms a transfer film on the mating surface. This film acts as a solid lubricant, reducing friction and wear.
- Suitable for dry running applications where external lubrication is not feasible.
- Sintered Bronze Layer:
- Beneath the PTFE layer is a sintered bronze powder layer, which:
- Enhances thermal conductivity, dissipating heat away from the bearing surface.
- Acts as a reservoir for the PTFE mixture, ensuring consistent lubrication over time.
- Beneath the PTFE layer is a sintered bronze powder layer, which:
- Steel Backing:
- The base layer is a steel backing strip, which provides:
- High load-carrying capacity.
- Excellent heat dissipation.
- Structural strength and durability.
- The base layer is a steel backing strip, which provides:
- Copper/Tin Plating:
- The steel backing is often coated with a copper/tin plating for enhanced corrosion resistance.
Key Features and Benefits
- Low Friction: PTFE provides a low coefficient of friction, making these bearings ideal for applications requiring smooth motion.
- Dry Running: No external lubrication is required, reducing maintenance needs.
- Wear Resistance: The PTFE transfer film protects the mating surface, extending the life of both the bearing and the shaft.
- High Load Capacity: The steel backing ensures the bearing can handle heavy loads.
- Thermal Conductivity: The sintered bronze layer efficiently dissipates heat, preventing overheating.
- Corrosion Resistance: Copper/tin plating and optional stainless steel backing provide excellent resistance to corrosion.
- Customizable: Available in a wide range of sizes, including metric, imperial, flanged, washers, and strips. Special sizes can be produced to meet specific requirements.
Applications
PTFE-lined wrapped bearings are suitable for high-duty applications, including:
- Automotive Suspension Struts
- Shock Absorbers
- Hydraulic Cylinders
- Gear Pumps and Motors
- Axial and Radial Piston Pumps and Motors
- Industrial Machinery
- Marine Equipment
Product Range
PTFE-lined wrapped bearings are available in the following configurations:
- Standard Steel-Backed Bearings:
- Suitable for most applications.
- Copper/tin plating for corrosion resistance.
- Bronze-Backed Bearings:
- Ideal for applications requiring higher corrosion resistance or where steel is not suitable.
- Stainless Steel-Backed Bearings:
- Designed for highly corrosive environments or where hygiene is critical (e.g., food processing, medical equipment).
Available Sizes and Types
- Metric Plain
- Imperial Plain
- Metric Flanged
- Metric Washers
- Imperial Washers
- Metric Strip
- Imperial Strip
- Custom Sizes: Special dimensions can be manufactured to meet specific customer requirements.
Why Choose PTFE-Lined Wrapped Bearings?
- Versatility: Suitable for a wide range of applications, from automotive to industrial machinery.
- Durability: Designed to withstand high loads, harsh environments, and extended use.
- Low Maintenance: Dry running capability eliminates the need for frequent lubrication.
- Custom Solutions: Available in standard and custom sizes to fit unique requirements.
If you need further assistance with selecting the right PTFE-lined wrapped bearings for your application, or if you require custom sizes, feel free to provide more details about your specific needs!
Acetal-lined wrapped bearings are an excellent choice for applications requiring low friction, high wear resistance, and long re-lubrication intervals. These bearings are designed with a composite structure that combines the benefits of acetal copolymer with a steel backing strip and sintered bronze layer, making them ideal for rotary and oscillating movements in demanding environments. Below is a detailed overview of their features, benefits, and applications:
Structure of Acetal-Lined Wrapped Bearings
- Acetal Copolymer Layer:
- The top layer is made of acetal copolymer (POM), which provides:
- Low friction and high wear resistance.
- Outstanding damping properties, reducing noise and vibration.
- Low water absorption, making it suitable for humid or wet environments.
- Low susceptibility to edge loading, ensuring even load distribution.
- The top layer is made of acetal copolymer (POM), which provides:
- Sintered Bronze Layer:
- Beneath the acetal layer is a sintered bronze layer, which:
- Enhances thermal conductivity, dissipating heat away from the bearing surface.
- Acts as a reservoir for grease, ensuring consistent lubrication over time.
- Beneath the acetal layer is a sintered bronze layer, which:
- Steel Backing Strip:
- The base layer is a low-carbon steel backing strip, which provides:
- High load-carrying capacity.
- Excellent heat dissipation.
- Structural strength and durability.
- The base layer is a low-carbon steel backing strip, which provides:
- Grease Reservoirs:
- The surface of the acetal layer features circular indents that act as grease reservoirs. These should be filled with grease during assembly to ensure smooth operation and extended service life.
Key Features and Benefits
- Low Friction: Acetal copolymer provides a low coefficient of friction, ensuring smooth operation.
- High Wear Resistance: The acetal layer is highly resistant to wear, even under heavy loads.
- Long Re-Lubrication Intervals: The sintered bronze layer and grease reservoirs reduce the need for frequent re-lubrication.
- Water Resistance: Acetal copolymer does not absorb water, making it suitable for humid or wet environments.
- Outstanding Damping Properties: Reduces noise and vibration, ideal for precision applications.
- Low Susceptibility to Edge Loading: Ensures even load distribution, extending bearing life.
- High Load Capacity: The steel backing strip provides exceptional strength and durability.
- Cost-Effective Maintenance: Reduces maintenance costs and downtime.
Applications
Acetal-lined wrapped bearings are suitable for a wide range of applications, including:
- Rear Chassis Hinges
- Articulation Joints
- Spindles of Drills
- Gearboxes and Clutches
- Grinding and Milling Machines
- Industrial Machinery
- Agricultural Equipment
- Marine Applications
Product Range
Acetal-lined wrapped bearings are available in the following configurations:
- Metric Plain
- Imperial Plain
- Metric Washers
- Imperial Washers
- Metric Strip
- Imperial Strip
- Custom Sizes: Special dimensions can be manufactured to meet specific customer requirements.
Why Choose Acetal-Lined Wrapped Bearings?
- Versatility: Suitable for rotary and oscillating movements in a wide range of industries.
- Durability: Designed to withstand high loads, harsh environments, and extended use.
- Low Maintenance: Long re-lubrication intervals and water resistance reduce maintenance needs.
- Cost Savings: Reduces maintenance costs and extends the life of machinery.
- Custom Solutions: Available in standard and custom sizes to fit unique requirements.
Assembly and Maintenance Tips
- Grease Application: Fill the circular indents on the acetal surface with grease during assembly to ensure optimal performance.
- Regular Inspection: Periodically check the bearing for wear and re-grease if necessary.
- Proper Installation: Ensure the bearing is correctly aligned and installed to prevent edge loading and premature wear.
If you need further assistance with selecting the right acetal-lined wrapped bearings for your application, or if you require custom sizes, feel free to provide more details about your specific needs!

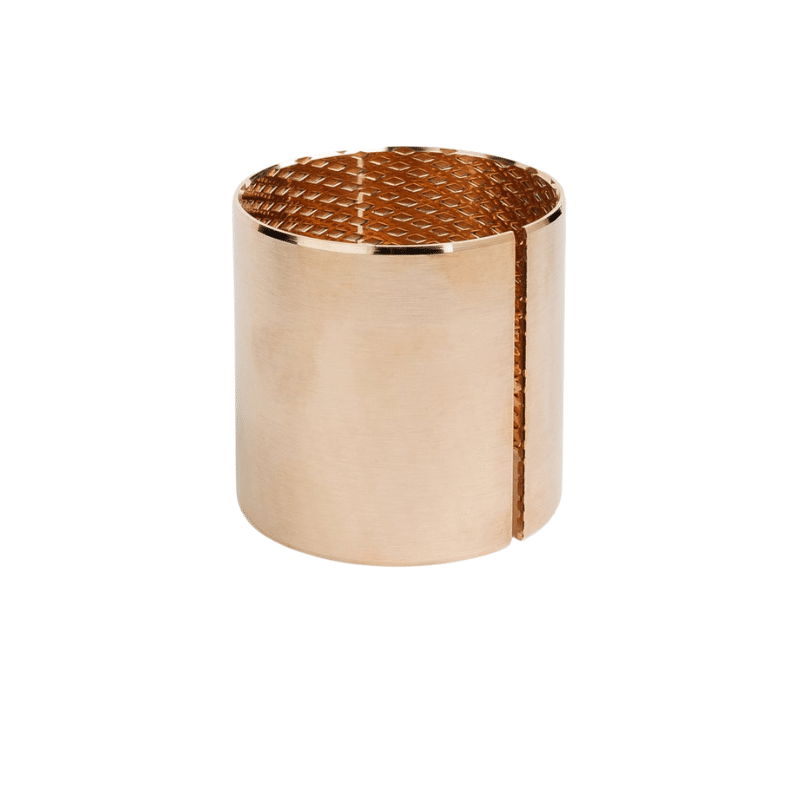

The CuSn8 bronze bearings range is an extremely versatile and cost-effective solution for slow-speed, high-load applications, particularly those involving oscillating motion. These bearings are manufactured from rolled phosphor bronze alloy (CuSn8), which offers excellent wear resistance, corrosion resistance, and load-carrying capacity. Below is a detailed overview of their features, benefits, and applications:
Structure of CuSn8 Bronze Bearings
- Material Composition:
- Cu (Copper): Balance
- Sn (Tin): 8.5%
- P (Phosphorus): 0.2%
This composition provides:
- High strength and hardness.
- Excellent wear resistance.
- Outstanding corrosion resistance, including resistance to saltwater and corrosion cracking.
- Surface Features:

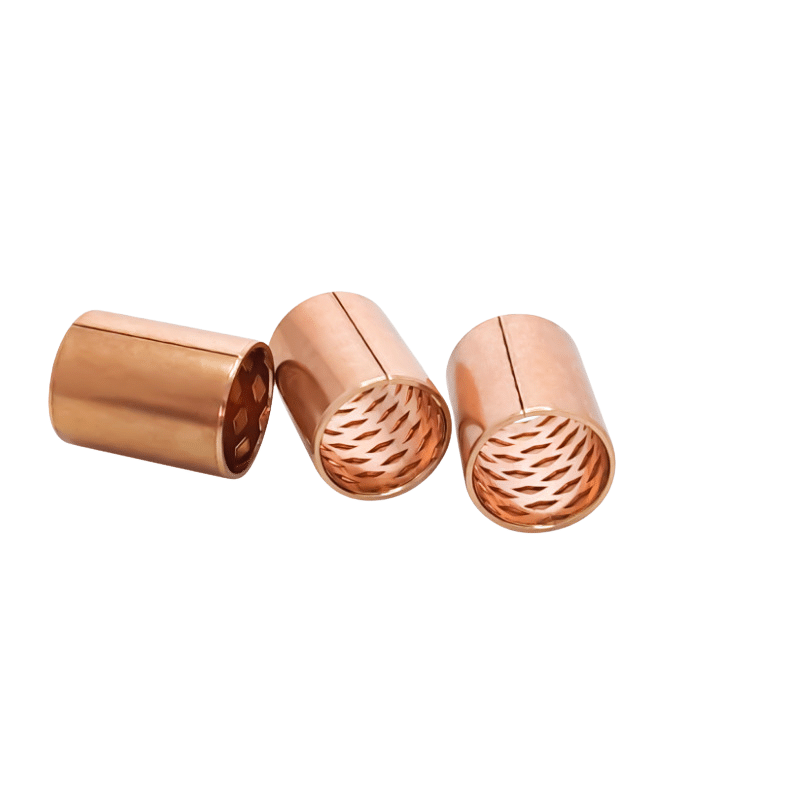

- Diamond Indentations or Oil Grooves: The working surface is rolled with diamond indentations or stamped with oil grooves. These features act as reservoirs for grease or oil, ensuring long-term lubrication and reducing maintenance needs.
- Pockets, Grooves, or Thru-Holes: For heavier applications, the bearings can be customized with grease pockets, grooves, or thru-holes to enhance lubrication and performance.
Key Features and Benefits
- High Load Capacity: Suitable for slow-speed, high-load applications, including oscillating motion.
- Corrosion Resistance: Excellent resistance to saltwater and corrosion cracking, making them ideal for marine and harsh environments.
- Wear Resistance: The hard phosphor bronze alloy ensures long service life even under heavy loads.
- Cost-Effective: More economical than machined, roller, or ball bearings.
- Versatility: Can handle both radial and axial loads.
- Low Maintenance: Grease or oil reservoirs reduce the need for frequent re-lubrication.
- Customizable: Available with pockets, grooves, or thru-holes for specific application requirements.
Applications
CuSn8 bronze bearings are well-suited for a wide range of industries and applications, including:
- Construction Equipment
- Mining and Quarrying Machinery
- Agricultural Machinery
- Automotive Components
- Marine Equipment
- Industrial Machinery
- Heavy-Duty Oscillating Motion Applications
Product Range
The CuSn8 bronze bearings range includes:
- Standard Bronze Bearings: Available in various sizes and configurations.
- Customized Bearings: Can be produced with grease pockets, grooves, or thru-holes for enhanced lubrication in heavy-duty applications.
- Surface Features: Bearings can be supplied with diamond indentations or oil grooves for improved lubrication.
Why Choose CuSn8 Bronze Bearings?
- Durability: The hard phosphor bronze alloy ensures long-lasting performance in demanding environments.
- Corrosion Resistance: Ideal for use in marine and corrosive environments.
- Cost Savings: A cost-effective alternative to machined or rolling element bearings.
- Custom Solutions: Can be tailored to meet specific application requirements, including lubrication features and load capacities.
Assembly and Maintenance Tips
- Lubrication: Fill the diamond indentations, oil grooves, or grease pockets with lubricant during assembly to ensure optimal performance.
- Regular Inspection: Periodically check the bearings for wear and re-lubricate if necessary.
- Proper Installation: Ensure the bearings are correctly aligned and installed to prevent uneven wear and premature failure.
If you have specific project requirements or need assistance in selecting the right CuSn8 bronze bearings, feel free to reach out to discuss your needs further. Custom solutions are available to ensure the bearings meet your application’s demands.
Revolutionizing Machinery with FB090 Bronze Bearings: A Game-Changer in Industrial Applications
In the world of industrial machinery, the quest for durability, efficiency, and cost-effectiveness is never-ending. Enter the FB090 bronze bearing, a high-performance solution that is transforming the way industries approach load-bearing applications. With its unique structure and exceptional features, the FB090 bronze bearing is setting new standards in performance and reliability. Let’s dive into what makes this bearing a must-have for various industrial applications.
The Structure: Precision Engineering at Its Best
The FB090 bronze bearing is crafted from a high-density copper alloy base, ensuring superior strength and durability. What sets it apart is its innovative design, featuring diamond or hemispherical oil indentations. These indentations not only enhance lubrication but also reduce friction, ensuring smooth operation even under heavy loads. This precision engineering makes the FB090 bearing a standout choice for demanding environments.
Key Features of FB090 Bronze Bearings
- High Density: The high-density copper alloy base provides exceptional strength, making the bearing capable of withstanding extreme pressures without deformation.
- High Load Capacity: Designed to handle heavy loads, the FB090 bearing is ideal for applications where traditional bearings might fail.
- Good Wear Resistance: The material and design ensure minimal wear and tear, even in high-friction environments, extending the bearing’s lifespan.
- Long Service Life: Thanks to its robust construction and wear-resistant properties, the FB090 bearing offers a significantly longer service life compared to conventional options.
- Compact and Cost-Effective: The FB090 bearing is smaller in size, reducing material usage and overall costs. It’s a perfect replacement for traditional casting copper bushings, offering better performance at a lower cost.
Applications: Where FB090 Bronze Bearings Shine
The versatility of the FB090 bronze bearing makes it suitable for a wide range of industrial applications, including:
- Lifting Machinery: From cranes to hoists, the FB090 bearing ensures smooth and reliable operation under heavy loads.
- Construction Machinery: Excavators, bulldozers, and other heavy equipment benefit from the bearing’s durability and high load capacity.
- Automobile and Tractor Chassis: The FB090 bearing enhances the performance and longevity of vehicle components, even in rugged conditions.
- Machine Tool Industry: Precision and reliability are critical in machine tools, and the FB090 bearing delivers on both fronts.
- Mining Machinery: In the harsh and demanding environment of mining operations, the FB090 bearing stands up to the challenge, offering unmatched wear resistance and durability.
Availability: Tailored to Your Needs
The FB090 bronze bearing is available in various configurations to suit different applications:
- Bearing Shell: Ideal for radial load-bearing applications.
- Flange Bushing: Perfect for applications requiring axial stability.
- Thrust Washer: Designed to handle axial loads with ease.
- Cup Bushing: A versatile option for a wide range of industrial uses.
Why Choose FB090 Bronze Bearings?
The FB090 bronze bearing is more than just a component; it’s a solution that addresses the challenges of modern industrial machinery. Its high density, load capacity, and wear resistance make it a reliable choice for demanding applications. By replacing traditional casting copper bushings, the FB090 bearing not only improves performance but also reduces costs, making it a smart investment for any industry.
Conclusion
In an era where efficiency and durability are paramount, the FB090 bronze bearing emerges as a game-changer. Whether you’re in the construction, automotive, or mining industry, this bearing offers the performance and reliability you need to keep your machinery running smoothly. Upgrade to FB090 bronze bearings today and experience the difference in quality and performance!
Have you used FB090 bronze bearings in your applications? Share your experience in the comments below!
Wrapped Bimetal Bearings are a robust and versatile solution for a wide range of general-purpose and heavy-duty applications. These bearings consist of a steel backing strip lined with a sintered bronze layer, combining the strength of steel with the wear resistance and lubrication properties of bronze. Below is a detailed overview of their features, benefits, and applications:
Structure of Wrapped Bimetal Bearings
- Steel Backing Strip:
- Provides high load-carrying capacity and structural strength.
- Ensures excellent heat dissipation, preventing overheating in high-load applications.
- Sintered Bronze Layer:
- A porous, sintered bronze layer is bonded to the steel backing.
- Acts as a reservoir for lubricant (oil or grease), ensuring consistent lubrication over time.
- Offers good wear resistance and low friction, making it suitable for both rotary and oscillating motions.
Key Features and Benefits
- High Load Capacity: The steel backing provides exceptional strength, making these bearings suitable for heavy-duty applications.
- Wear Resistance: The sintered bronze layer ensures long service life, even under high loads and harsh conditions.
- Versatility: Can be lubricated with either oil or grease, depending on the application requirements.
- Heat Dissipation: The steel backing efficiently dissipates heat, preventing overheating and extending bearing life.
- Cost-Effective: A durable and economical solution compared to more complex bearing types.
- Customizable: Available in metric and imperial sizes, with the ability to produce non-standard sizes through in-house machining services.
Applications
Wrapped bimetal bearings are suitable for a wide range of applications, including:
- General-Purpose Machinery
- Heavy-Duty Industrial Equipment
- Automotive Components
- Agricultural Machinery
- Construction Equipment
- Hydraulic Systems
- Pumps and Compressors
- Marine Equipment
Product Range
- Standard Sizes: Available in metric and imperial sizes to suit a wide range of applications.
- Custom Sizes: Non-standard sizes can be produced to meet specific customer requirements through in-house machining services.
- Lubrication Options: Can be used with oil or grease, depending on the application.
Why Choose Wrapped Bimetal Bearings?
- Durability: The combination of steel and sintered bronze ensures long-lasting performance in demanding environments.
- Versatility: Suitable for a wide range of applications, from general-purpose to heavy-duty.
- Low Maintenance: The sintered bronze layer acts as a lubricant reservoir, reducing the need for frequent re-lubrication.
- Custom Solutions: Ability to produce non-standard sizes ensures a perfect fit for unique applications.
Assembly and Maintenance Tips
- Lubrication: Ensure the bearing is properly lubricated with oil or grease during assembly to maximize performance and lifespan.
- Regular Inspection: Periodically check the bearing for wear and re-lubricate as needed.
- Proper Installation: Ensure the bearing is correctly aligned and installed to prevent uneven wear and premature failure.
If you have specific requirements or need assistance in selecting the right wrapped bimetal bearings for your application, feel free to reach out. Custom solutions are available to ensure the bearings meet your needs.
