Wrapped bushing, Bronze CuSn8, DIN 1494 / ISO 3547, Low-maintenance
BRONZE BUSHING MATERIALS: CuSn8P (DIN 17662) alternative CuSn6P available.
The FB 090 is a slotted thin-walled bronze bushing with grease pockets. This bearing can be manufactured with or without a flange, but lubrication is required for proper function. The unique feature of this bushing is the internally punched rectangular grease pockets, which serve as repositories for the grease. This feature minimizes the need for frequent lubrication, thus facilitating outdoor usage. Moreover, it lowers the friction and strain at the moment of start, enhancing the overall durability and performance of the bushing.
Cras ultricies ligula sed magna dictum.
RANGE OF APPLICATION

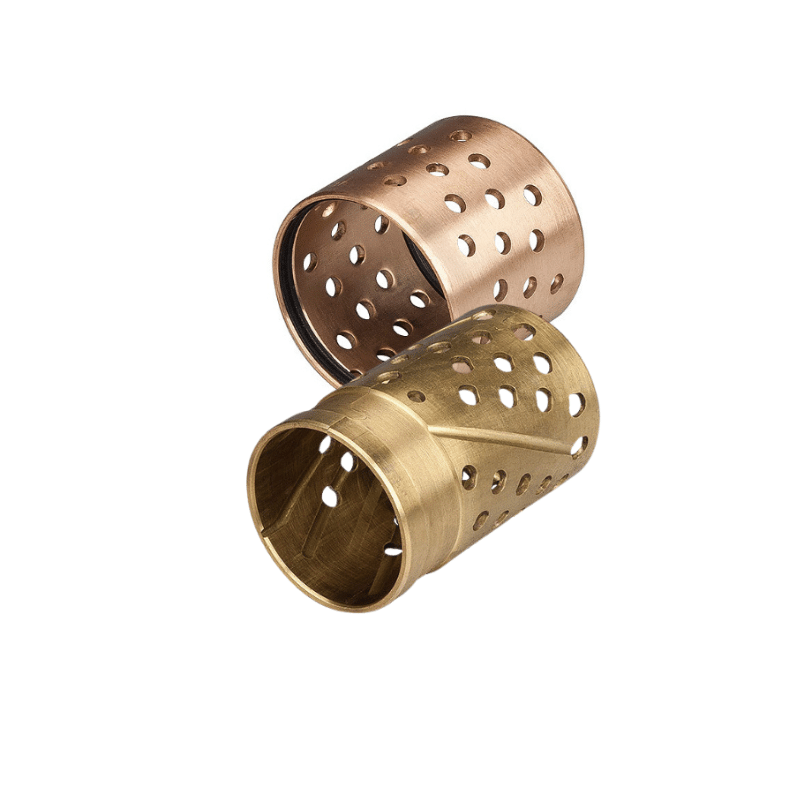

F090 model, which is a bronze bushing that includes grease pockets. These grease pockets are designed to retain lubricant that helps in reducing friction during operation, thereby extending the lifespan and efficiency of the bushing.
Various types of bronze bearings designed for different applications, but all share the common trait of being made from durable bronze material and often having special features like oil pockets for enhanced lubrication and performance. Agriculture machinery, truck cranes & construction machinery, suitable for impact loads.
viiplus offers growing products of engineered self-lubricating wrapped bronze bushing and sliding bearings products and services to keep industries moving efficiently and reliably.
It is a wrapped bronze bushing. Our standard material is CuSn8, alternatively, we also can supply a CuSn6 bronze bushing. The hardness of CuSn6 will slightly be lesser. Economic solution for wrapped bronze bushings application due to a thin wall thickness. The advantage is that they are produced from bronze sheet materials with max. the thickness of bronze bearings 2.5mm.
Stronger. By Weapped Bronze Bushing Custom Size Design.
Prototype Services
Building components for your evaluation.
- Flange bearings – CuSn8 High load capability and good stability with low abrasion.
- Plain cylindrical bronze bearings – Always self-lubricating & Low-maintenance
- Customized size bearings – We will manufacture the exact wrapped bronze bearing you need at a low cost.
- Split type bushings – Bronze CuSn8, DIN 1494 / ISO 3547, Easy to install,
- Simple design – Cost-effective, Suitable for rough working conditions, good corrosion resistance.
VIIPLUS.COM provides engineering, custom fabrication & manufacturing of high-performance bronze bushing & bearing materials. is a low maintenance bushing material. An initial greasing during installation is necessary, after that periodic greasing with oil or grease is mandatory. The diamond pockets are an excellent lubrication depot and keeping maintenance to a minimum.
Technical specifications for these different types of Bronze Bearings:
FB090 Wrapped Bronze Bearings: These are bronze bearings that feature a wrap design. The bearings have built-in oil pockets for self-lubrication, which reduces friction and extends their life. They are suitable for a range of applications and provide high load capacity.

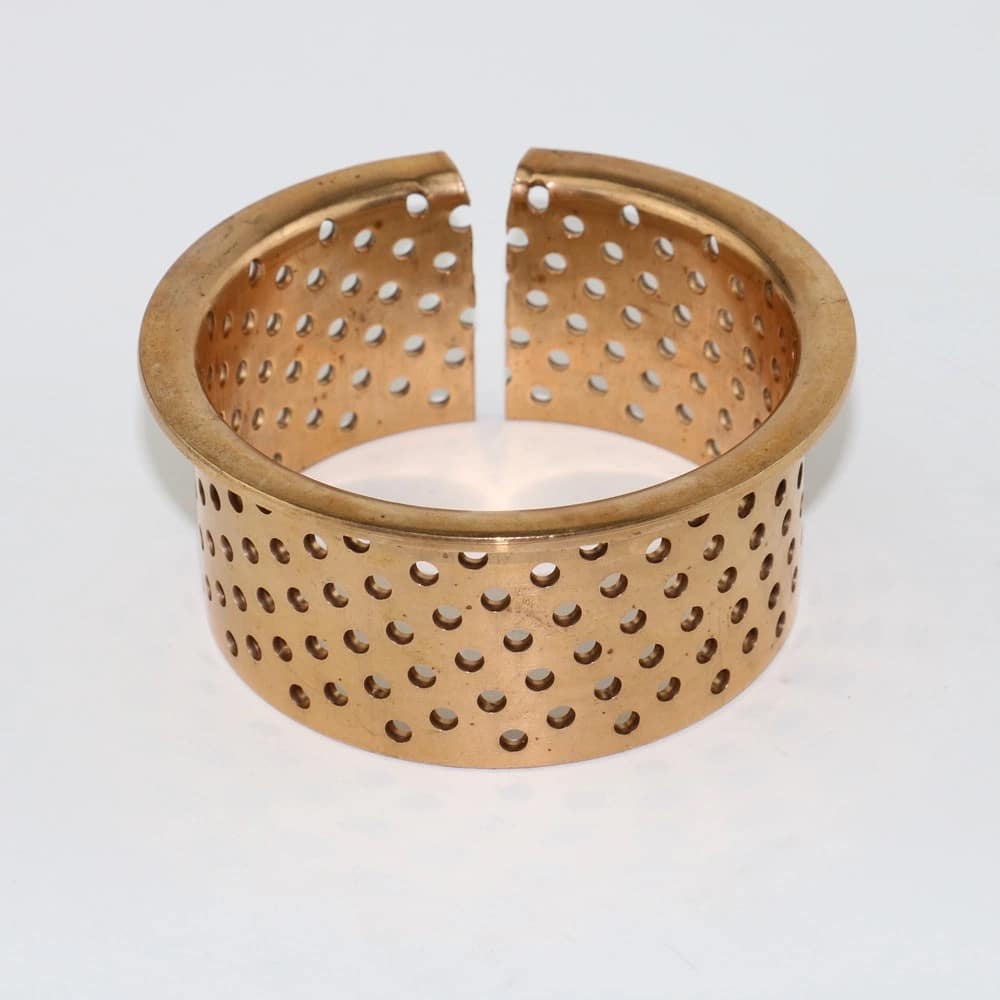

Bronze Split Bushing: This is a type of bushing made from bronze and features a split design. This design allows the bushing to be inserted into a housing or mounted onto a shaft more easily. Like the wrapped bearings, these also have excellent durability and performance characteristics.
CuSn6.5P and CuSn8P Bronze Bearings: These are specific types of bronze bearings made from the bronze alloys CuSn6.5P and CuSn8P respectively. They have excellent mechanical properties and resistance to corrosion.

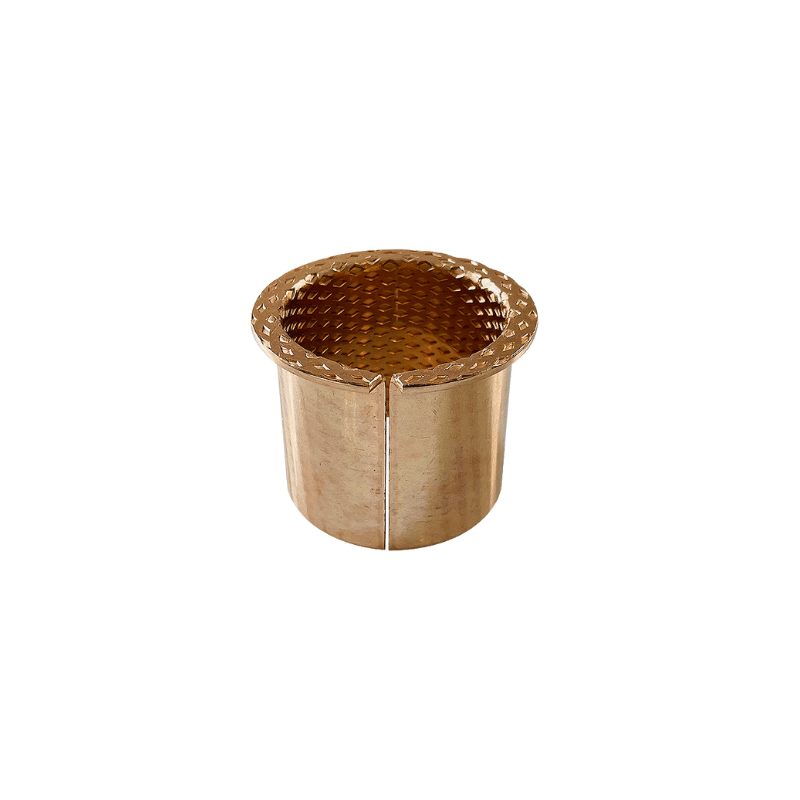

Diamond Oil Pocket: This term refers to a specific design feature found in some types of bronze bearings. The bearings have diamond-shaped pockets that hold lubricant, which reduces friction and enhances the operational efficiency and lifespan of the bearing.
FB090, WB700, WB800, BRO-MET, BMZ Bronze Bush: These are different models or types of bronze bearings. Despite their different names, they all utilize bronze for their construction, which gives them excellent durability and performance characteristics.
Type of bearings known as sliding bearings or bushings. The specific type in this case is a bronze bushing that features grease pockets. These grease pockets are typically used to hold lubricant, which helps reduce friction and wear during the operation of the bushing. This design often results in extended maintenance intervals and improved performance.
WB800 and WF800 Bronze Bearings, as well as the FB090 Bronze Bush, are produced from CuSn8P or CuSn6P bronze alloys. These wrapped bronze bushings originate from China.
The FB090 Wrapped Bronze Bearings are made entirely of bronze, lending them exceptional durability and corrosion resistance. These bearings are especially suited for applications that require regular re-lubrication, particularly in environments where dirt and other contaminants might be present. The re-lubrication helps to flush out these contaminants and reduce the friction that can affect the performance of the bearings.
In essence, these bronze bearings are designed for applications where high strength, durability, and resistance to harsh environments are required. The use of bronze material along with the unique wrapped design allows for superior performance and increased lifespan. The ability to regularly lubricate these bearings is an added advantage, particularly in conditions where dirt and other contaminants are prevalent.
FB090 and FB092 bronze bushings size chart:
FB090 and FB092 bronze bushings are available in a variety of sizes. The size of a bronze bushing is usually determined by its inner diameter (ID), outer diameter (OD), and length. These dimensions are often measured in millimeters (mm).
For example, a bushing might be labeled as FB090 10x15x20, which means that it has an inner diameter of 10mm, an outer diameter of 15mm, and a length of 20mm.
The exact size of the FB090 or FB092 bushing you need will depend on the specific requirements of your application. You should refer to the technical specifications of your equipment or consult with a professional to determine the appropriate size.
provided an extensive size chart for the FB090 Bronze Bushing. Here’s a simplified explanation:
This chart is detailing the many sizes available for the FB090 Bronze Bushing. The notation ‘d1xd2xb’ signifies the inner diameter (d1), the outer diameter (d2), and the length (b) of the bushing, each in millimeters.
For example, ‘FB 090-1010’ indicates a FB090 Bronze Bushing that has an inner diameter of 10mm, an outer diameter of 12mm, and a length of 10mm.
Similarly, ‘FB 090-300100’ would indicate a FB090 Bronze Bushing with an inner diameter of 300mm, an outer diameter of 305mm, and a length of 100mm.
These bushings come in a variety of sizes to fit the diverse needs of different machinery and equipment. Always ensure to select the correct size bushing for your specific requirements to ensure the optimal function and longevity of the component.
| Art no | d1xd2xb |
| FB 090-1010 | 10x12x10 |
| FB 090-1015 | 10x12x15 |
| FB 090-1210 | 12x14x10 |
| FB 090-1215 | 12x14x15 |
| FB 090-1220 | 12x14x20 |
| FB 090-1410 | 14x16x10 |
| FB 090-1415 | 14x16x15 |
| FB 090-1420 | 14x16x20 |
| FB 090-1420 | 14x16x20 |
| FB 090-1425 | 14x16x25 |
| FB 090-1510 | 15x17x10 |
| FB 090-1515 | 15x17x15 |
| FB 090-1520 | 15x17x20 |
| FB 090-1525 | 16x18x25 |
| FB 090-1610 | 16x18x10 |
| FB 090-1620 | 16x18x20 |
| FB 090-1625 | 16x18x25 |
| FB 090-1810 | 18x20x10 |
| FB 090-1815 | 18x20x15 |
| FB 090-1820 | 18x20x20 |
| FB 090-1825 | 18x20x25 |
| FB 090-2010 | 20x23x10 |
| FB 090-2015 | 20x23x15 |
| FB 090-2020 | 20x23x20 |
| FB 090-2025 | 20x23x25 |
| FB 090-2030 | 20x23x30 |
| FB 090-2215 | 22x25x15 |
| FB 090-2020 | 20x25x20 |
| FB 090-2225 | 22x25x25 |
| FB 090-2230 | 20x25x30 |
| FB 090-2240 | 22x25x40 |
| FB 090-2430 | 24x27x30 |
| FB 090-2515 | 25x28x15 |
| FB 090-2520 | 25x28x20 |
| FB 090-2525 | 25x28x25 |
| FB 090-2530 | 25x28x30 |
| FB 090-2815 | 28x32x15 |
| FB 090-2820 | 28x32x20 |
| FB 090-2825 | 28x32x25 |
| FB 090-2830 | 28x32x30 |
| FB 090-3015 | 30x34x15 |
| FB 090-3020 | 30x34x20 |
| FB 090-3025 | 30x34x25 |
| FB 090-3030 | 30x34x30 |
| Art no | d1xd2xb |
| FB 090-3040 | 30x34x40 |
| FB 090-3215 | 32x36x15 |
| FB 090-3220 | 32x36x20 |
| FB 090-3225 | 32x36x25 |
| FB 090-3230 | 32x36x30 |
| FB 090-3240 | 32x36x40 |
| FB 090-3515 | 35x39x15 |
| FB 090-3520 | 35x39x20 |
| FB 090-3520 | 35x39x20 |
| FB 090-3525 | 35x39x25 |
| FB 090-3530 | 35x39x30 |
| FB 090-3535 | 35x39x35 |
| FB 090-3540 | 35x39x40 |
| FB 090-3550 | 35x39x50 |
| FB 090-4020 | 40x44x20 |
| FB 090-4025 | 40x44x25 |
| FB 090-4030 | 40x44x30 |
| FB 090-4040 | 40x44x40 |
| FB 090-4050 | 40x44x50 |
| FB 090-4060 | 40x44x60 |
| FB 090-4520 | 45x50x20 |
| FB 090-4525 | 45x50x25 |
| FB 090-4530 | 45x50x30 |
| FB 090-4540 | 45x50x40 |
| FB 090-4550 | 45x50x50 |
| FB 090-4560 | 45x50x60 |
| FB 090-5025 | 50x55x25 |
| FB 090-5030 | 50x55x30 |
| FB 090-5040 | 50x55x40 |
| FB 090-5050 | 50x55x50 |
| FB 090-5060 | 50x55x60 |
| FB 090-5520 | 55x60x20 |
| FB 090-5525 | 55x60x25 |
| FB 090-5530 | 55x60x30 |
| FB 090-5540 | 55x60x40 |
| FB 090-5550 | 55x60x50 |
| FB 090-5560 | 55x60x60 |
| FB 090-6025 | 60x65x25 |
| FB 090-6030 | 60x65x30 |
| FB 090-6035 | 60x65x35 |
| FB 090-6040 | 60x65x40 |
| FB 090-6050 | 60x65x50 |
| FB 090-6060 | 60x65x60 |
| FB 090-6080 | 60x65x80 |
| Art no | d1xd2xb |
| FB 090-6090 | 60x65x90 |
| FB 090-6540 | 65x70x40 |
| FB 090-6550 | 65x70x50 |
| FB 090-6560 | 65x70x60 |
| FB 090-6580 | 65x70x80 |
| FB 090-7040 | 70x75x40 |
| FB 090-7050 | 70x75x50 |
| FB 090-7060 | 70x75x60 |
| FB 090-7070 | 70x75x70 |
| FB 090-7080 | 70x75x80 |
| FB 090-7090 | 70x75x90 |
| FB 090-7530 | 75x80x30 |
| FB 090-7540 | 75x80x40 |
| FB 090-7560 | 75x80x60 |
| FB 090-7580 | 75x80x80 |
| FB 090-8030 | 80x85x30 |
| FB 090-8040 | 80x85x40 |
| FB 090-8060 | 80x85x60 |
| FB 090-8080 | 80x85x80 |
| FB 090-8530 | 85x90x30 |
| FB 090-8540 | 85x90x40 |
| FB 090-8560 | 85x90x60 |
| FB 090-8580 | 85x90x80 |
| FB 090-9040 | 90x95x40 |
| FB 090-9060 | 90x95x60 |
| FB 090-9080 | 90x95x80 |
| FB 090-9090 | 90x95x90 |
| FB 090-10050 | 100x105x50 |
| FB 090-10060 | 100x105x60 |
| FB 090-10095 | 100x105x95 |
| FB 090-10560 | 105x110x60 |
| FB 090-105100 | 105x110x100 |
| FB 090-11060 | 110x115x60 |
| FB 090-110100 | 105x115x100 |
| FB 090-11560 | 115x120x60 |
| FB 090-115100 | 115x120x100 |
| FB 090-12060 | 120x125x60 |
| FB 090-120100 | 120x125x100 |
| FB 090-12560 | 125x130x60 |
| FB 090-125100 | 125x130x100 |
| FB 090-13060 | 130x135x60 |
| FB 090-130100 | 130x135x100 |
| FB 090-135100 | 135x140x60 |
| Art no | d1xd2xb |
| FB 090-14060 | 140x145x60 |
| FB 090-140100 | 140x145x100 |
| FB 090-14560 | 145x150x60 |
| FB 090-145100 | 145x150x100 |
| FB 090-15060 | 150x155x60 |
| FB 090-150100 | 150x155x100 |
| FB 090-15560 | 155x160x60 |
| FB 090-155100 | 155x160x100 |
| FB 090-16060 | 160x165x60 |
| FB 090-160100 | 160x165x100 |
| FB 090-16560 | 165x170x60 |
| FB 090-165100 | 165x170x100 |
| FB 090-17060 | 170x175x60 |
| FB 090-170100 | 170x175x100 |
| FB 090-17560 | 175x180x60 |
| FB 090-175100 | 175x180x100 |
| FB 090-18060 | 180x185x60 |
| FB 090-180100 | 180x185x100 |
| FB 090-18560 | 185x190x60 |
| FB 090-185100 | 185x190x100 |
| FB 090-19060 | 190x195x60 |
| FB 090-190100 | 190x195x100 |
| FB 090-19560 | 195x200x60 |
| FB 090-195100 | 195x200x100 |
| FB 090-20060 | 200x205x60 |
| FB 090-200100 | 200x205x100 |
| FB 090-21560 | 215x220x60 |
| FB 090-215100 | 215x220x100 |
| FB 090-25560 | 225x230x60 |
| FB 090-225100 | 225x230x100 |
| FB 090-23560 | 235x240x60 |
| FB 090-235100 | 235x240x100 |
| FB 090-24560 | 245x250x60 |
| FB 090-245100 | 245x250x100 |
| FB 090-27560 | 275x280x60 |
| FB 090-275100 | 275x280x100 |
| FB 090-28560 | 285x290x60 |
| FB 090-285100 | 285x290x100 |
| FB 090-30060 | 300x305x60 |
| FB 090-300100 | 300x305x100 |
Wrapped Bronze Bushing Technical Data
- Specific load capacity static< 120 [N/mm2]
- Specific load capacity dynamic< 40 [N/mm2]
- Sliding speed≤ 2.5 [m/s]
- Friction value0.05 [µ] to 0.12 [µ] depending on lubrication
- Temperature strain– 40 [°C] to + 250 [°C]
- Max. PV-value2.8 [N/mm² x m/s]
- The percentage of contact area on the ID is > 75%
